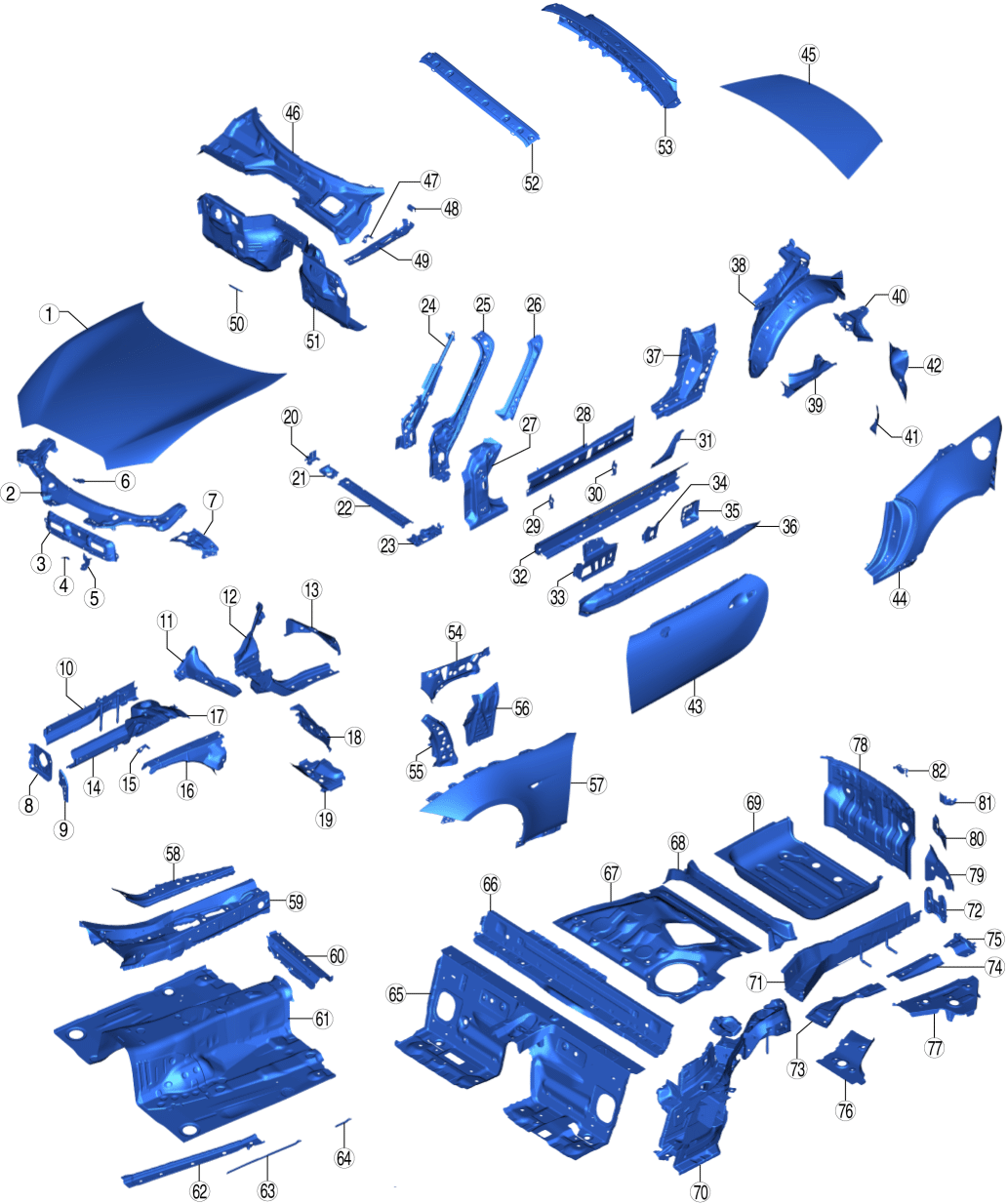

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

Except Mexico Specs.

×: Applied-: Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm )

1

Hood (*)

-

-

-

0.90 {0.035}

2

Shroud upper panel

-

×

×

0.65 {0.026}

3

Shroud lower panel

-

-

×

0.60 {0.024}

4

Shroud gusset

-

-

×

1.40 {0.0551}

5

Shroud upper reinforcement

-

×

×

0.70 {0.028}

6

Shroud side stay

-

-

×

1.40 {0.0551}

7

Shroud side panel

-

×

×

1.00 {0.0394}

8

Bumper bracket

×

-

×

2.00 {0.0787}

9

Light bracket

LH

-

-

×

1.40 {0.0551}

RH

-

-

×

1.00 {0.0394}

10

Front side frame (inner)

Front

-

×

×

1.20 {0.0472}

Rear

×

-

×

1.40 {0.0551}

11

Front frame (rear) reinforcement

×

-

×

2.00 {0.0787}

12

Front frame component

Front frame (outer) No.2

×

-

×

1.80 {0.0709}

Frame reinforcement

×

-

×

1.40 {0.0551}

Suspension mounting reinforcement

-

-

×

1.40 {0.0551}

Front frame (rear)

×

-

×

1.60 {0.0630}

13

Front frame (outer)

×

-

×

1.20 {0.0472}

14

Front side frame (outer)

Front

-

×

×

1.20 {0.0472}

Rear

×

-

×

1.20 {0.0472}

15

Front fender junction

-

-

×

0.80 {0.031}

16

Wheel apron component

Wheel apron (front)

×

-

×

0.70 {0.028}

Wheel apron (rear)

×

-

×

1.00 {0.0394}

Apron reinforcement (rear)

-

-

×

0.80 {0.031}

Apron reinforcement (upper)

-

×

×

0.80 {0.031}

Apron reinforcement (lower)

-

-

×

0.70 {0.028}

17

Front side frame component (front)

Suspension housing (upper)

-

-

×

1.60 {0.0630}

Front frame reinforcement

-

×

×

1.60 {0.0630}

Frame inner reinforcement (front)

×

-

×

1.20 {0.0472}

Frame inner reinforcement (rear)

×

-

×

1.40 {0.0551}

Apron reinforcement

-

-

×

1.00 {0.0394}

18

Front frame reinforcement No.2

-

×

×

0.90 {0.035}

19

Torque box

-

×

×

1.20 {0.0472}

20

Crossmember No.1 side bracket

-

-

×

1.00 {0.0394}

21

Crossmember No.1 side reinforcement (RH)

-

-

×

0.80 {0.031}

22

Crossmember No.1

-

×

×

0.80 {0.031}

23

Crossmember No.1 side reinforcement component (LH)

Crossmember No.1 reinforcement

-

-

×

2.00 {0.0787}

Side reinforcement

-

-

×

1.20 {0.0472}

24

Front pillar reinforcement component

Front pillar reinforcement (outer)

×

-

-

1.40 {0.0551}

Front pillar reinforcement (inner)

-

-

-

2.00 {0.0787}

25

Front pillar (inner) component

Hinge pillar (inner)

×

-

×

1.60 {0.0630}

Front pillar (inner)

×

-

-

1.00 {0.0394}

Front pillar reinforcement (inner)

×

-

×

1.20 {0.0472}

26

Front pillar (outer)

×

-

×

1.00 {0.0394}

27

Hinge pillar (outer)

×

-

×

1.20 {0.0472}

28

Side sill reinforcement

×

-

×

0.70 {0.028}

29

Side sill reinforcement (front)

×

-

-

1.00 {0.0394}

30

Side sill reinforcement (center)

×

-

-

1.00 {0.0394}

31

Side sill reinforcement (rear)

×

-

-

1.40 {0.0551}

32

Side sill (inner) component

Side sill (inner)

×

-

-

1.20 {0.0472}

Side sill reinforcement

×

-

×

1.20 {0.0472}

33

Side sill (inner) reinforcement (front)

×

-

×

1.20 {0.0472}

34

Side sill (inner) reinforcement (center)

×

-

×

0.80 {0.031}

35

Side sill (inner) reinforcement (rear)

×

-

×

1.60 {0.0630}

36

Side sill (outer)

×

-

×

1.20 {0.0472}

37

Corner junction component

Corner pillar (inner)

-

-

-

0.80 {0.031}

B pillar (inner, upper)

×

-

-

1.60 {0.0630}

Corner junction (outer)

×

-

-

0.80 {0.031}

Corner junction (inner)

-

×

-

1.80 {0.0709}

Corner reinforcement

-

-

-

0.60 {0.024}

Side sill gusset

×

-

×

1.60 {0.0630}

38

Rear pillar (inner) component

B pillar (inner, lower)

×

-

-

0.80 {0.031}

Rear pillar (inner, lower)

-

-

×

0.60 {0.024}

Side brace

-

-

-

0.60 {0.024}

Wheel housing (inner)

-

-

×

0.60 {0.024}

Package gusset

-

×

-

1.20 {0.0472}

39

Rear fender rain rail

-

-

×

0.75 {0.030}

40

Rear pillar (inner, upper)

-

-

-

0.60 {0.024}

41

Rear fender panel (lower)

-

-

×

0.65 {0.026}

42

Corner plate

-

-

×

0.65 {0.026}

43

Door panel (outer)

-

×

×

0.65 {0.026}

44

Rear fender panel

-

-

×

0.65 {0.026}

45

Trunk lid (outer) panel (*)

-

-

-

0.90 {0.035}

46

Dash panel (upper)

-

-

×

0.65 {0.026}

47

Front fender bracket

-

-

×

0.80 {0.031}

48

End plate

-

-

×

0.90 {0.035}

49

Cowl upper plate

Cowl upper plate (front)

×

-

×

1.20 {0.0472}

Cowl upper plate (rear)

-

-

×

1.40 {0.0551}

50

Hole cover

-

-

×

0.60 {0.024}

51

Dash panel (lower)

-

×

×

0.80 {0.031}

52

Front header

×

-

×

1.00 {0.0394}

53

Rear deck panel

-

×

-

0.75 {0.030}

54

Cowl side reinforcement

×

-

×

0.70 {0.028}

55

Cowl side junction

×

-

×

0.65 {0.026}

56

Cowl side panel

×

-

×

0.70 {0.028}

57

Front fender panel

-

-

-

1.10 {0.0433}

58

Floor reinforcement

Front

×

-

-

2.00 {0.0787}

Rear

×

-

-

1.20 {0.0472}

59

Tunnel reinforcement component

Dash side reinforcement

×

-

-

1.20 {0.0472}

Instrument panel bracket

×

-

-

1.80 {0.0709}

60

Crossmember No.2

Crossmember No.2 (inner)

×

-

-

1.00 {0.0394}

Crossmember No.2 (outer)

-

×

-

1.60 {0.0630}

61

Front floor component

Floor reinforcement

×

-

-

0.80 {0.031}

Front floor panel

-

-

×

0.60 {0.024}

62

Front B frame

×

-

×

1.20 {0.0472}

63

Floor reinforcement (front)

×

-

-

1.40 {0.0551}

64

Floor reinforcement (rear)

LH

-

-

-

1.40 {0.0551}

RH

-

-

-

0.60 {0.024}

65

Center floor panel component

Seat bracket

-

×

-

1.00 {0.0394}

Center floor panel

×

-

×

0.80 {0.031}

Tunnel reinforcement (rear)

-

×

-

1.60 {0.0630}

66

Crossmember No.3 component

Crossmember No.3

×

-

×

1.00 {0.0394}

Crossmember No.3 reinforcement

×

-

-

1.20 {0.0472}

67

Rear floor panel

-

-

×

0.60 {0.024}

68

Crossmember No.4

-

×

×

0.80 {0.031}

69

Trunk floor panel

-

-

×

0.60 {0.024}

70

Rear side frame (front)

Rear side sill (inner)

×

-

×

1.20 {0.0472}

Rear side frame

×

-

×

1.00 {0.0394}

Rear frame reinforcement

-

-

-

1.40 {0.0551}

Rear suspension housing

-

×

×

2.30 {0.0906}

71

Rear side frame (rear)

×

-

×

1.20 {0.0472}

72

Rear bumper bracket

×

-

×

1.60 {0.0630}

73

Rear side frame (upper, front)

×

-

-

0.90 {0.035}

74

Rear side frame (upper, rear)

×

-

-

0.80 {0.031}

75

Floor side panel No.1

×

-

-

1.60 {0.0630}

76

Rear frame reinforcement

×

-

×

1.20 {0.0472}

77

Floor side panel No.2

-

-

×

0.60 {0.024}

78

Rear end panel component

Rear end panel

-

-

×

0.60 {0.024}

Rear end member

-

-

-

0.65 {0.026}

79

Light bracket (rear)

-

-

×

0.65 {0.026}

80

Rear fender gusset

-

-

×

0.60 {0.024}

81

Rear bumper bracket (side)

-

-

×

1.00 {0.0394}

82

Rear bumper bracket (center)

-

-

×

1.00 {0.0394}

(*): Aluminum

Mexico Specs.

×: Applied-: Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm )

1

Hood (*)

-

-

-

0.90 {0.035}

2

Shroud upper panel

-

×

×

0.65 {0.026}

3

Shroud lower panel

-

-

×

0.60 {0.024}

4

Shroud gusset

-

-

×

1.40 {0.0551}

5

Shroud upper reinforcement

-

×

×

0.70 {0.028}

6

Shroud side stay

-

-

×

1.40 {0.0551}

7

Shroud side panel

-

×

×

1.00 {0.0394}

8

Bumper bracket

×

-

×

2.00 {0.0787}

9

Light bracket

LH

-

-

×

1.40 {0.0551}

RH

-

-

×

1.00 {0.0394}

10

Front side frame (inner)

Front

-

×

×

1.20 {0.0472}

Rear

×

-

×

1.40 {0.0551}

11

Front frame (rear) reinforcement

×

-

×

2.00 {0.0787}

12

Front frame component

Front frame (outer) No.2

×

-

×

1.80 {0.0709}

Frame reinforcement

×

-

×

1.40 {0.0551}

Suspension mounting reinforcement

-

-

×

1.40 {0.0551}

Front frame (rear)

×

-

×

1.60 {0.0630}

13

Front frame (outer)

×

-

×

1.20 {0.0472}

14

Front side frame (outer)

Front

-

×

×

1.20 {0.0472}

Rear

×

-

×

1.20 {0.0472}

15

Front fender junction

-

-

×

0.80 {0.031}

16

Wheel apron component

Wheel apron (front)

×

-

×

0.70 {0.028}

Wheel apron (rear)

×

-

×

1.00 {0.0394}

Apron reinforcement (rear)

-

-

×

0.80 {0.031}

Apron reinforcement (upper)

-

×

×

0.80 {0.031}

Apron reinforcement (lower)

-

-

×

0.70 {0.028}

17

Front side frame component (front)

Suspension housing (upper)

-

-

×

1.60 {0.0630}

Front frame reinforcement

-

×

×

1.60 {0.0630}

Frame inner reinforcement (front)

×

-

×

1.20 {0.0472}

Frame inner reinforcement (rear)

×

-

×

1.40 {0.0551}

Apron reinforcement

-

-

×

1.00 {0.0394}

18

Front frame reinforcement No.2

-

×

×

0.90 {0.035}

19

Torque box

-

×

×

1.20 {0.0472}

20

Crossmember No.1 side bracket

-

-

×

1.00 {0.0394}

21

Crossmember No.1 side reinforcement (RH)

-

-

×

0.80 {0.031}

22

Crossmember No.1

-

×

×

0.80 {0.031}

23

Crossmember No.1 side reinforcement component (LH)

Crossmember No.1 reinforcement

-

-

×

2.00 {0.0787}

Side reinforcement

-

-

×

1.20 {0.0472}

24

Front pillar reinforcement component

Front pillar reinforcement (outer)

×

-

-

1.40 {0.0551}

Front pillar reinforcement (inner)

-

-

-

2.00 {0.0787}

25

Front pillar (inner) component

Hinge pillar (inner)

×

-

×

1.60 {0.0630}

Front pillar (inner)

×

-

-

1.00 {0.0394}

Front pillar reinforcement (inner)

×

-

×

1.20 {0.0472}

26

Front pillar (outer)

×

-

×

1.00 {0.0394}

27

Hinge pillar (outer)

×

-

×

1.20 {0.0472}

28

Side sill reinforcement

×

-

×

0.70 {0.028}

29

Side sill reinforcement (front)

×

-

-

1.00 {0.0394}

30

Side sill reinforcement (center)

×

-

-

1.00 {0.0394}

31

Side sill reinforcement (rear)

×

-

-

1.40 {0.0551}

32

Side sill (inner) component

Side sill (inner)

×

-

-

1.20 {0.0472}

Side sill reinforcement

×

-

×

1.20 {0.0472}

33

Side sill (inner) reinforcement (front)

×

-

×

1.20 {0.0472}

34

Side sill (inner) reinforcement (center)

×

-

×

0.80 {0.031}

35

Side sill (inner) reinforcement (rear)

×

-

×

1.60 {0.0630}

36

Side sill (outer)

×

-

×

1.20 {0.0472}

37

Corner junction component

Corner pillar (inner)

-

-

-

0.80 {0.031}

B pillar (inner, upper)

×

-

-

1.60 {0.0630}

Corner junction (outer)

×

-

-

0.80 {0.031}

Corner junction (inner)

-

×

-

1.80 {0.0709}

Corner reinforcement

-

-

-

0.60 {0.024}

Side sill gusset

×

-

×

1.60 {0.0630}

38

Rear pillar (inner) component

B pillar (inner, lower)

×

-

-

0.80 {0.031}

Rear pillar (inner, lower)

-

-

×

0.60 {0.024}

Side brace

-

-

-

0.60 {0.024}

Wheel housing (inner)

-

-

×

0.60 {0.024}

Package gusset

-

×

-

1.20 {0.0472}

39

Rear fender rain rail

-

-

×

0.75 {0.030}

40

Rear pillar (inner, upper)

-

-

-

0.60 {0.024}

41

Rear fender panel (lower)

-

-

×

0.65 {0.026}

42

Corner plate

-

-

×

0.65 {0.026}

43

Door panel (outer)

-

×

×

0.65 {0.026}

44

Rear fender panel

-

-

×

0.65 {0.026}

45

Trunk lid (outer) panel (*)

-

-

-

0.90 {0.035}

46

Dash panel (upper)

-

-

×

0.65 {0.026}

47

Front fender bracket

-

-

×

0.80 {0.031}

48

End plate

-

-

×

0.90 {0.035}

49

Cowl upper plate

Cowl upper plate (front)

×

-

×

1.20 {0.0472}

Cowl upper plate (rear)

-

-

×

1.40 {0.0551}

50

Hole cover

-

-

×

0.60 {0.024}

51

Dash panel (lower)

-

×

×

0.80 {0.031}

52

Front header

×

-

×

1.00 {0.0394}

53

Rear deck panel

-

×

-

0.75 {0.030}

54

Cowl side reinforcement

×

-

×

0.70 {0.028}

55

Cowl side junction

×

-

×

0.65 {0.026}

56

Cowl side panel

×

-

×

0.70 {0.028}

57

Front fender panel

-

-

-

1.10 {0.0433}

58

Floor reinforcement

Front

×

-

-

2.00 {0.0787}

Rear

×

-

-

1.20 {0.0472}

59

Tunnel reinforcement component

Dash side reinforcement

×

-

-

1.20 {0.0472}

Instrument panel bracket

×

-

-

1.80 {0.0709}

60

Crossmember No.2

Crossmember No.2 (inner)

×

-

-

1.00 {0.0394}

Crossmember No.2 (outer)

-

×

-

1.60 {0.0630}

61

Front floor component

Floor reinforcement

×

-

-

0.80 {0.031}

Front floor panel

-

-

×

0.60 {0.024}

62

Front B frame

×

-

×

1.20 {0.0472}

63

Center floor panel component

Seat bracket

-

×

-

1.00 {0.0394}

Center floor panel

×

-

×

0.80 {0.031}

Tunnel reinforcement (rear)

-

×

-

1.60 {0.0630}

64

Crossmember No.3 component

Crossmember No.3

×

-

×

1.00 {0.0394}

Crossmember No.3 reinforcement

×

-

-

1.20 {0.0472}

65

Rear floor panel

-

-

×

0.60 {0.024}

66

Crossmember No.4

-

×

×

0.80 {0.031}

67

Trunk floor panel

-

-

×

0.60 {0.024}

68

Rear side frame (front)

Rear side sill (inner)

×

-

×

1.20 {0.0472}

Rear side frame

×

-

×

1.00 {0.0394}

Rear frame reinforcement

-

-

-

1.40 {0.0551}

Rear suspension housing

-

×

×

2.30 {0.0906}

69

Rear side frame (rear)

×

-

×

1.20 {0.0472}

70

Rear bumper bracket

×

-

×

1.60 {0.0630}

71

Rear side frame (upper, front)

×

-

-

0.90 {0.035}

72

Rear side frame (upper, rear)

×

-

-

0.80 {0.031}

73

Floor side panel No.1

×

-

-

1.60 {0.0630}

74

Rear frame reinforcement

×

-

×

1.20 {0.0472}

75

Floor side panel No.2

-

-

×

0.60 {0.024}

76

Rear end panel component

Rear end panel

-

-

×

0.60 {0.024}

Rear end member

-

-

-

0.65 {0.026}

77

Light bracket (rear)

-

-

×

0.65 {0.026}

78

Rear fender gusset

-

-

×

0.60 {0.024}

79

Rear bumper bracket (side)

-

-

×

1.00 {0.0394}

80

Rear bumper bracket (center)

-

-

×

1.00 {0.0394}

(*): Aluminum

  Next >


Free to use workshop manual for your 2015+ Mk4 'ND' Mazda MX-5

COPYRIGHT NOTICE:
This fan site is not affiliated with Mazda, and is intended for personal, or commercial use only. The content of our web pages is for general information purposes only and is presented “as is”. We give no assurance or warranty regarding the accuracy of the contents. Readers should do their due diligence and seek the advice of an appropriately certified automotive technician before attempting any steps on this site. Original content provided by Mazda North America. The content of the manual is copyright under DMCA to: full.metal.resistor@gmail.com
LIMITATION OF LIABILITY:
We accept no responsibility for errors, inaccuracies, or omissions found on these pages. Additionally, we hereby exclude liability for any demands, claims, damages or losses of any kind with regard to any content or information provided on our web-site, including but not limited to incidental or consequential damages, direct or indirect loss, compensatory damages, loss of profits, or otherwise. By using this manual you assume full liablity for any procedures carried out on your vehicle, and are responsible for the vehicle remaining road legal and safe.
