COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.0]
1. Verify that the battery is fully charged.
2. Disconnect the cooling fan motor connector (2 terminals).

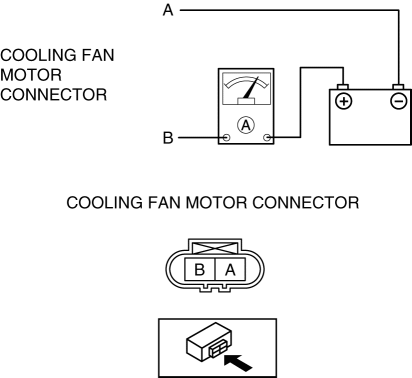

3. Connect the cooling fan motor connector (2 terminals) and a tester as shown in the figure.
4. Verify that cooling fan motor operates smoothly at the standard current.< Previous Next >
If there is any malfunction, replace the cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
Cooling fan motor standard current
7.6—11.6 A [12 V]
