REAR STABILIZER CONTROL LINK INSPECTION
1. Remove the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION.)
2. Inspect the rear stabilizer control link for bends or damage.
If there is any malfunction, replace the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION.)
3. Rotate and shake the rear stabilizer control link ball joint 10 times.

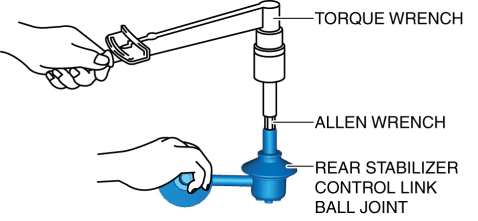

4. Measure the rear stabilizer control link ball joint rotational torque using an Allen wrench and a torque wrench.< Previous Next >
Rear stabilizer control link ball joint rotational torque
0.8—3.5 N·m {8.2—35 kgf·cm, 7.1—30 in·lbf}
If not within the specification, replace the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION.)
Even when within the specification, if there is excessive play in the rear stabilizer control link ball joint, replace the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION.)
