INSPECTION OF SST (DEPLOYMENT TOOL) [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

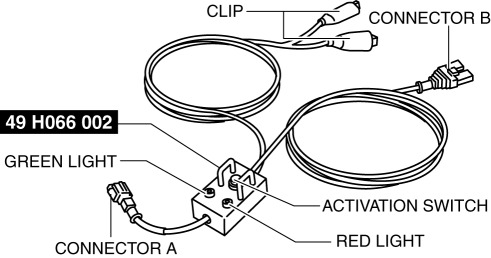

1. Before using the SST (49 H066 002), inspect its operation.

Inspection Procedure

1. Follow the steps below to inspect the SST (49 H066 002).

  • If not as indicated in the table, replace the SST (49 H066 002) because it has a malfunction.

WARNING:

  • Do not use a malfunctioning SST (49 H066 002), otherwise it could cause the air bag module or pre-tensioner seat belt to accidentally operate (deploy).

CAUTION:

  • Because the permissible voltage for the SST (49 H066 002) is 12 V, do not connect a 24 V power source because it will damage the SST. Always connect only a 12 V power source.

Step

Inspection procedure

Light condition

Green

Red

1

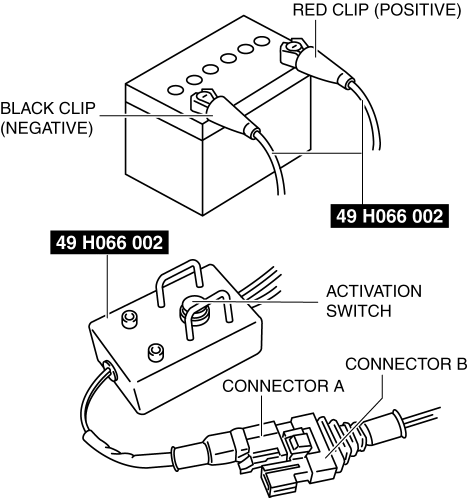

Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

On

Off

2

Connect connectors A and B.

Off

On

3

Press the activation switch.

On

Off
