FORWARD SENSING CAMERA (FSC) AIMING
NOTE:
The forward sensing camera (FSC) aiming procedure stores the camera shot angle in the FSC by reading a target used for aiming into the FSC.
Perform the FSC aiming if any of the following procedure is performed.
FSC replacement
FSC clip replacement
Windshield replacement
If an obstruction on the windshield or camera lens is blocking the scene in front of the vehicle, the target used for aiming cannot be read-in and aiming will not be performed correctly. Perform the following procedure before performing the aiming.
Verify that there is no water, dirt or sticker adhesion on the windshield, and that there is nothing on the camera lens such as dust or soiling.
Aiming procedure
1. Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools.
2. Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION.)

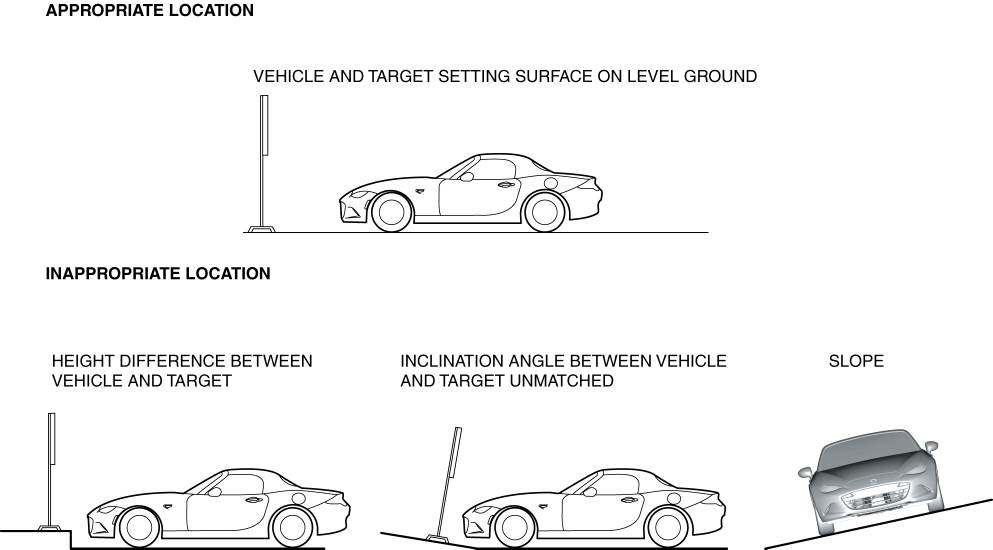

3. Move the vehicle to level ground.CAUTION:

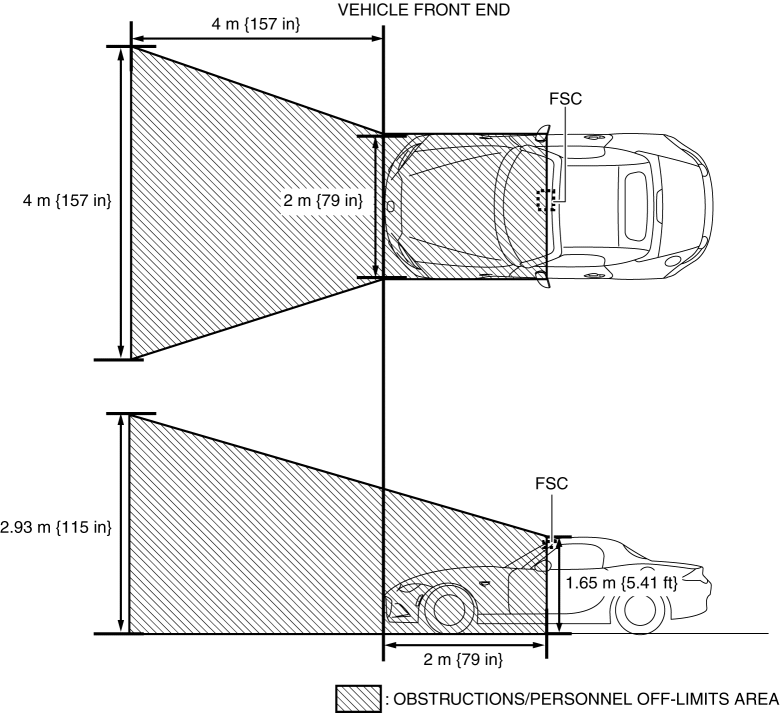

4. Verify that there are no obstructions such as metal objects in the shaded areas shown in the figure.CAUTION:
If the FSC aiming is performed with obstructions such as white and black patterned objects or reflective metal in the shaded areas, the FSC will determine such obstructions as targets and the FSC aiming procedure will not be performed correctly. Move all obstructions away from the shaded areas, and when performing the aiming, do not have personnel standing in the shaded areas.
5. Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B115E:54 are displayed. (See DTC INSPECTION [FORWARD SENSING CAMERA (FSC)].)NOTE:
Because DTC B115E:54 is output if aiming is not performed, continue to perform the FSC aiming only if DTC B115E:54 is output. (See DTC TABLE [FORWARD SENSING CAMERA (FSC)].)

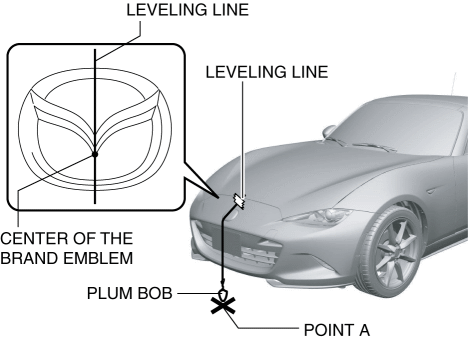

6. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.NOTE:
The center of the brand emblem indicates the center position of the vehicle.
7. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.NOTE:
The center of the brand emblem indicates the center position of the vehicle.
8. Secure the end of the leveling line over point B.NOTE:
Use a commercially-available leveling line.
9. Pull the unsecured end of the leveling line over the vehicle and to the front and adjust it so that it passes over point A.

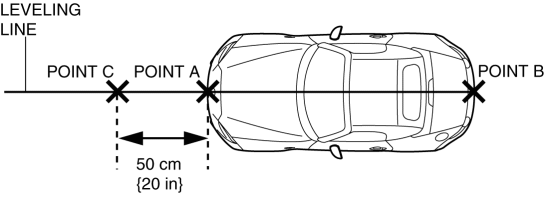

10. Mark the line (position C) at the point 50 cm {20 in} from point A and in the direction forward of the vehicle.
11. Mark the points (points D and E) 35 cm {14 in} from point C on the line which runs perpendicular to the vehicle center line.
12. Pull the connected points D, C and E lines (target setting line).
13. Print out 2 sheets of the following target paper without using scaling.NOTE:
If the target sheets cannot be printed, follow the dimensions shown in Step 15 to make target sheets.

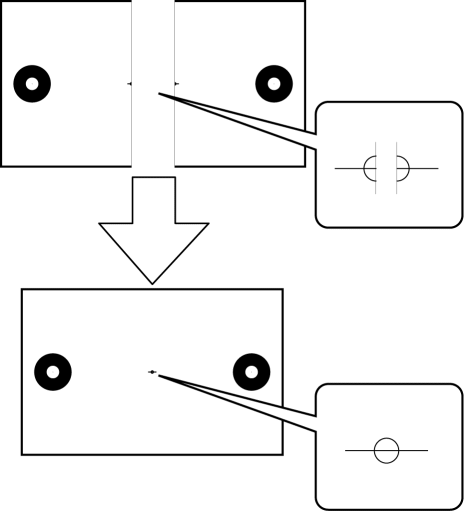

14. Cut the printed target sheets along the dotted line and line up the two sheets at their respective center marks as shown in the figure, and then affix cellophane tape to the back of the target.CAUTION:
When taping the two target sheets together, if cellophane tape is affixed to the front of the target sheets it could reflect light and adversely affect the aiming accuracy. When taping the two target sheets together, affix the cellophane tape to the back of the target pattern.

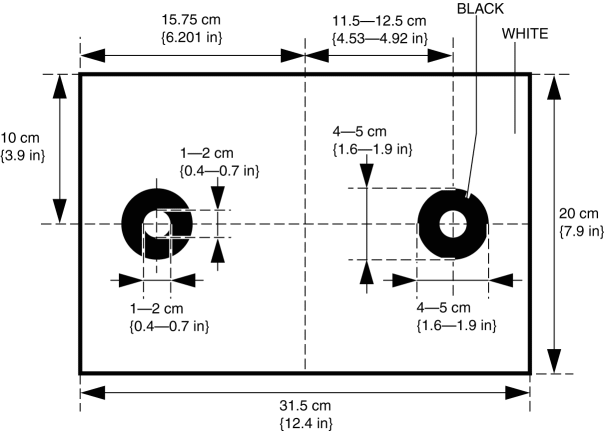

15. Verify that the taped-together target is of the dimensions shown in the figure.
16. Affix double-sided adhesive tape to the back of the target.CAUTION:
When affixing the target, if tape is affixed to the front of the target it could reflect light and adversely affect the aiming accuracy. When affixing the target, affix the double-sided adhesive tape to the back of the target, and then affix it to the board.

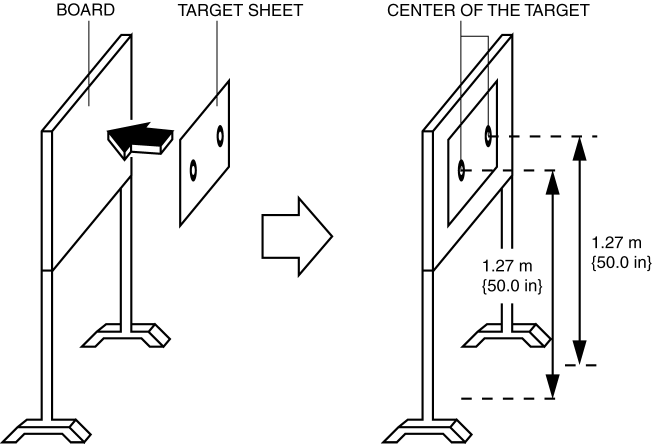

17. Align the target to the height shown in the figure, and affix it to a board.NOTE:
Use a wooden board which does not reflect light to affix the target.

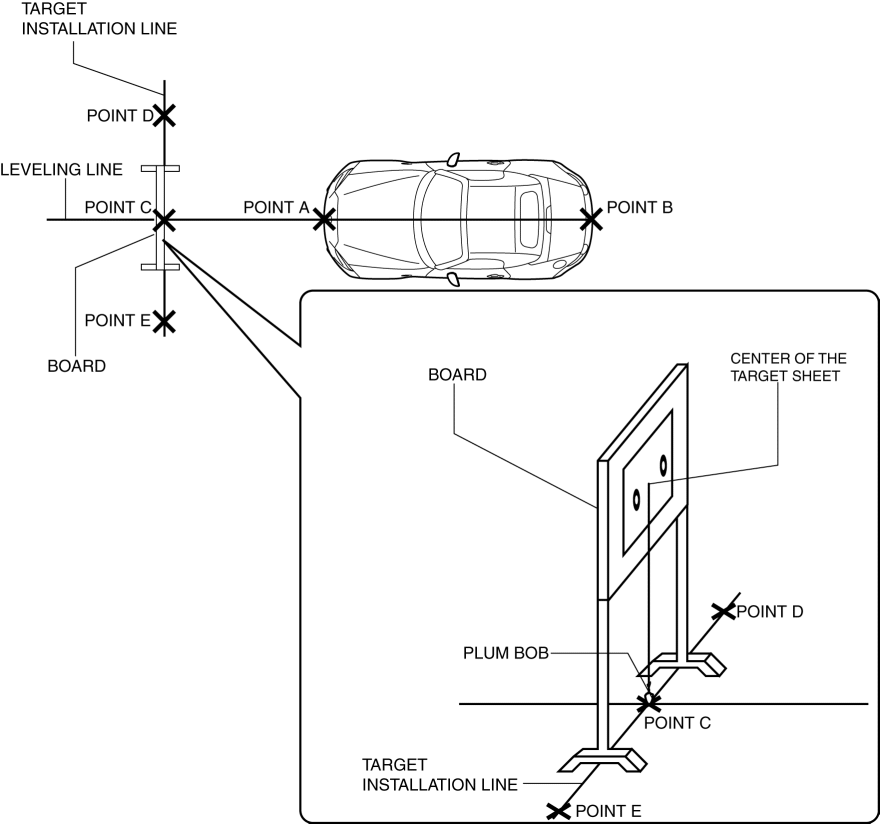

18. Align the center of the target with point C using the SST (plum bob).
19. Align so that the board and the target setting line are level with the center of point C.
20. Connect the M-MDS (IDS) to the DLC-2.
21. After vehicle identification, the following can be selected from the M-MDS initialization screen.
"Electrical"
"FSC Aiming"
22. Input the following values according to the instructions on the M-MDS screen.
Item
Value
mm
in
Input height from the ground to the wheel house.
Front Left
670
Front Right
670
Rear Left
662
Rear Right
662
Input the distance from the target to the front wheel center.
-1,259
Input the distance from the lens center to the vehicle center.
-101.5
-4
Input the distance from the ground to the target center.
1,270
50
23. Perform the FSC aiming procedure according to the directions on the M-MDS.
24. Verify the M-MDS display.
If "Procedure successful" is displayed
FSC aiming completed
If "Procedure unsuccessful" is displayed
Perform an inspection according to the following table for the error code procedure.
If an error code other than the error codes in the following table is displayed, verify the following and re-perform the FSC aiming if there is no malfunction, as there could be a communication error between the FSC and the diagnostic tester.
Is the battery positive voltage for the vehicle 8 V or more?
Is the ignition switched ON (engine off or on)?
Error code |
Detection condition |
01 |
Target set position or input value is incorrect |
02 |
Visibility where aiming is performed is bright or dark, target soiled |
03 |
Target is not detected |
04 |
Target moves during aiming |
05 |
Input vehicle value exceeds specification |
06 |
Aiming result is required during aiming |
08 |
Aiming result is required for FSC with aiming not completed |
FF |
Aiming cannot be performed due to communication error |
Step |
Inspection |
Action |
|
1 |
VERIFY VEHICLE HEIGHT INPUT VALUE
|
Yes |
Go to the next step. |
No |
Input the vehicle height indicated in Step 22 for aiming, then go to the next step. |
||
2 |
|
Yes |
Repair the target for malfunction and go to the next step. |
No |
Go to the next step. |
||
3 |
PERFORM FSC AIMING
|
Yes |
FSC aiming is completed. |
No |
|
||
4 |
PERFORM FSC AIMING AT ACTUAL MEASURED VALUE OF VEHICLE HEIGHT
|
Yes |
The FSC aiming is completed. |
No |
Go to the next step. |
||
5 |
|
Yes |
|
No |
Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally. |
Step |
Inspection |
Action |
|
1 |
VERIFY TARGET AND TARGET SETTING ENVIRONMENT
|
Yes |
Repair the malfunctioning part and go to the next step. |
No |
Go to the next step. |
||
2 |
PERFORM FSC AIMING
|
Yes |
The FSC aiming is completed. |
No |
|
||
3 |
PERFORM FSC AIMING WITH ACTUAL MEASURED VALUE OF VEHICLE HEIGHT
|
Yes |
The FSC aiming is completed. |
No |
Go to the next step. |
||
4 |
|
Yes |
|
No |
Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally. |
Step |
Inspection |
Action |
|
1 |
PERFORM FSC AIMING
|
Yes |
The FSC aiming is completed. |
No |
|
||
2 |
|
Yes |
|
No |
Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally. |
Step |
Inspection |
Action |
|
1 |
|
Yes |
|
No |
Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally. |
Wheel house height measurement procedure
1. Adjust the SST (plum bob) so that it crosses the center of the wheel and identify the center position of the wheel house.
2. Measure the height from the uppermost part of the wheel house to the floor.< Previous Next >
