BLIND SPOT MONITORING (BSM) SWITCH INSPECTION
NOTE:
The blind spot monitoring (BSM) switch is integrated with the cluster switch.
To replace the blind spot monitoring (BSM) switch, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
Resistance Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:a. Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)b. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)c. Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)d. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

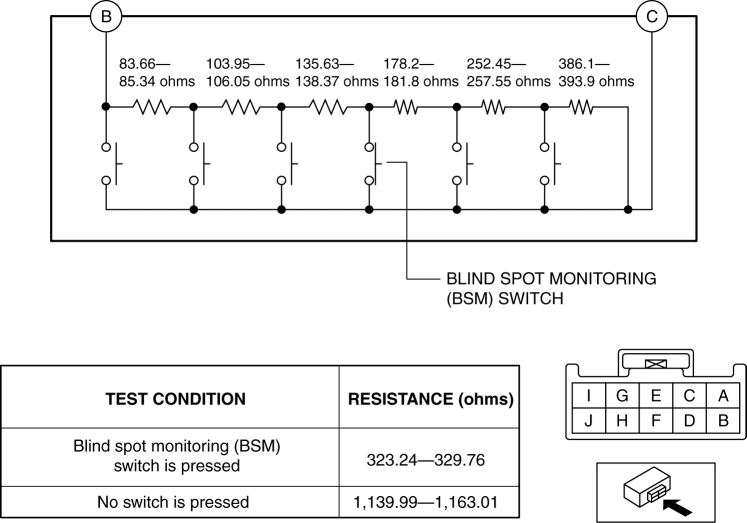

3. Verify that the resistance between cluster switch terminals B and C is as indicated in the table.
If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
LED Illumination Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:a. Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)b. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)c. Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)d. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

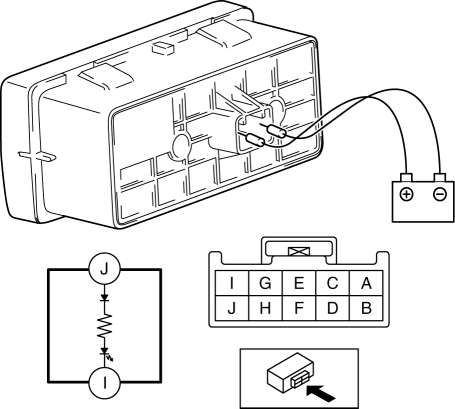

3. Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.
4. Verify that the LED is turned on.< Previous Next >
If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
