ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ELECTRICAL SUPPLY UNIT (ESU)]

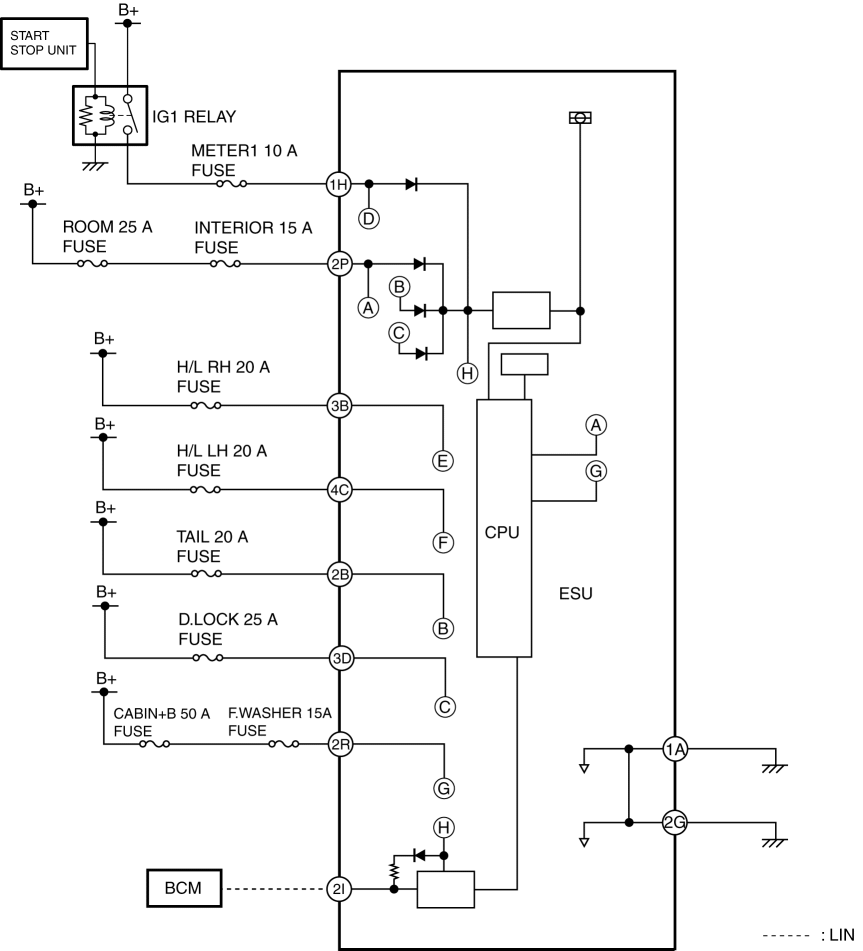

Power supply, earth, LIN communication

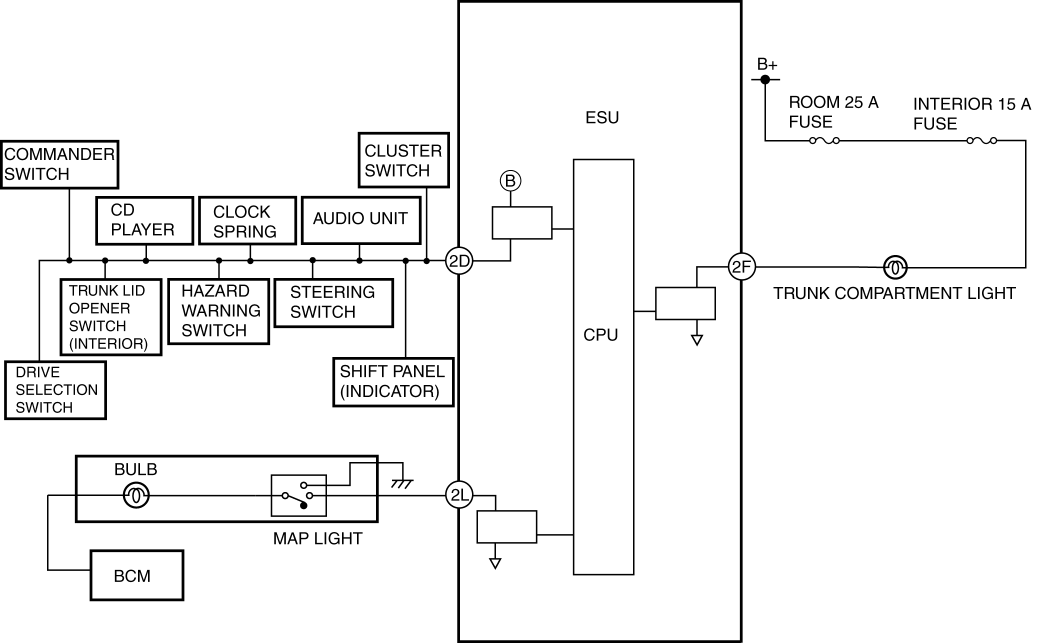

Map light, trunk compartment light
Exterior lighting

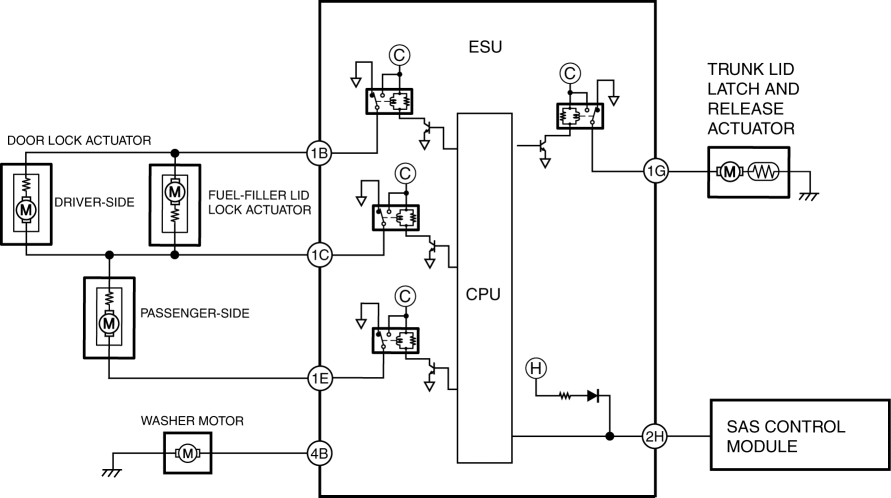

Door lock, washer
< Previous Next >Power supply, earth, LIN communication
Map light, trunk compartment light
Exterior lighting
Door lock, washer
