DOOR HINGE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
3. Disconnect washer hose B from joint pipe A. (See WASHER HOSE REMOVAL/INSTALLATION.)
4. Remove the following parts:
a. Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)
b. Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION.)
c. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
d. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
e. Side step molding (See SIDE STEP MOLDING REMOVAL.) (See SIDE STEP MOLDING INSTALLATION.)
f. Door (See DOOR REMOVAL/INSTALLATION.)
g. Front fender insulator (See FRONT FENDER INSULATOR REMOVAL/INSTALLATION.)
h. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

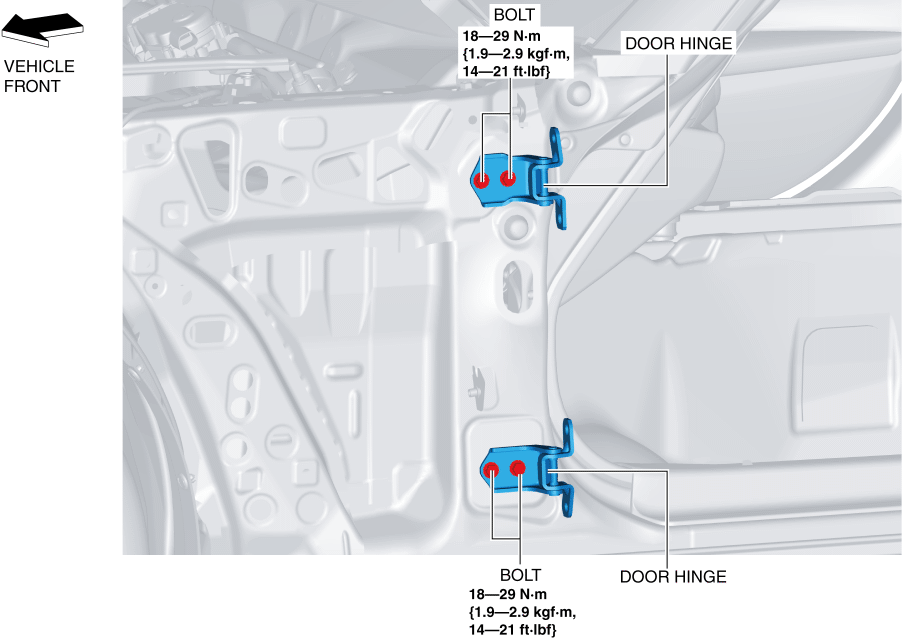

5. Remove the bolts.

6. Remove the door hinges.
7. Install in the reverse order of removal.
8. Adjust the door. (See DOOR ADJUSTMENT.)
