POWER OUTER MIRROR INSPECTION
Mirror Glass Adjustment
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)b. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)c. Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)d. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)e. Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

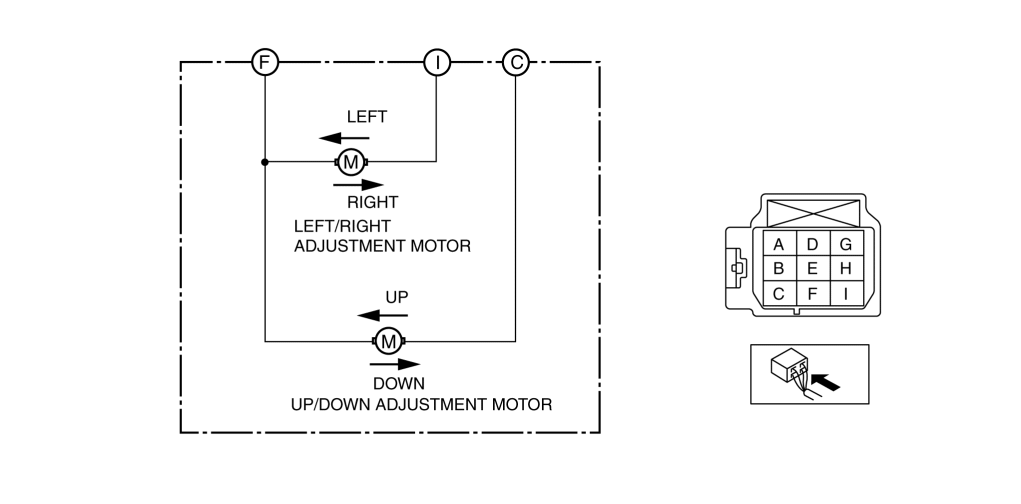

3. Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
B+ terminal
Ground terminal
Operation
C
F
Up
F
C
Down
I
F
Left
F
I
Right
If the power outer mirror does not operate as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
Heated Outer Mirror Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)b. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)c. Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)d. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)e. Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

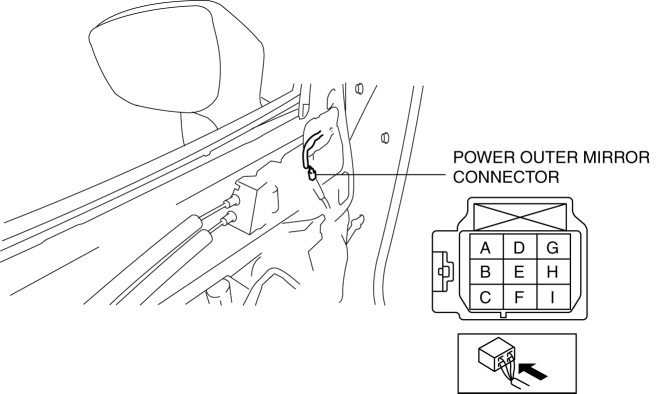

3. Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.
If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
Blind Spot Monitoring (BSM) Warning Light Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)b. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)c. Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)d. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)e. Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

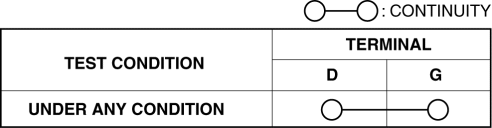

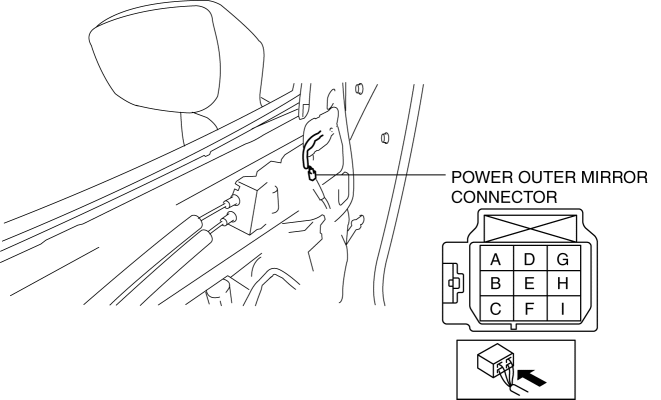

3. Verify that the continuity between blind spot monitoring (BSM) warning light connector terminals is as indicated in the table.
If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
Auto-dimming Outer Mirror Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)b. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)c. Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)d. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)e. Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

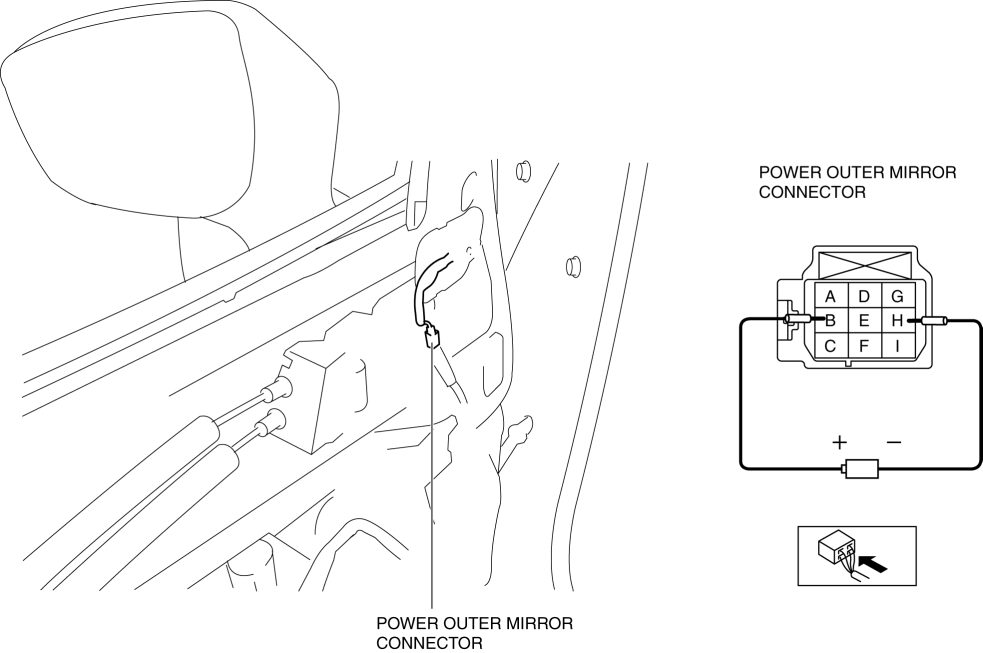

3. Disconnect the power outer mirror connector.
4. Connect the power outer mirror connector terminal B to a dry cell battery's plus (+) terminal (1.2 V) and terminal H to its minus terminal.

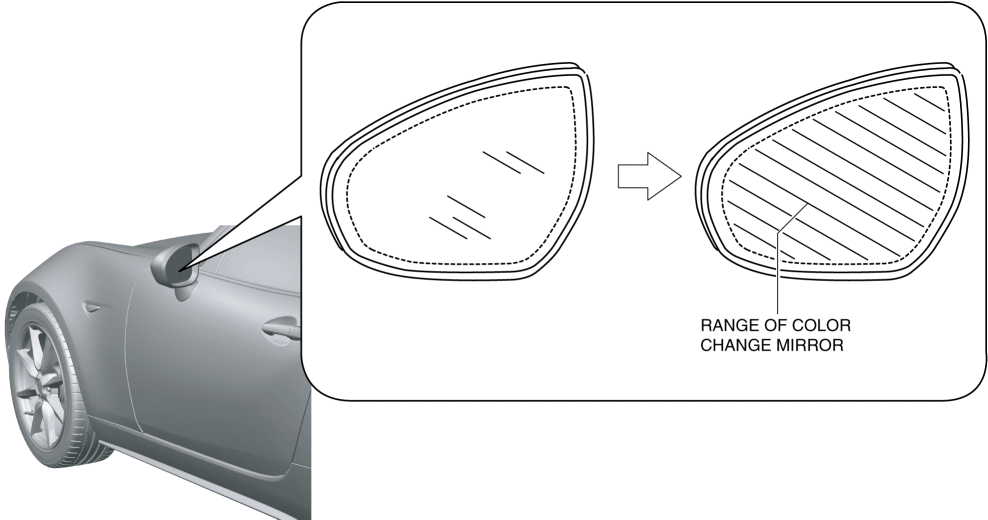

5. If there is any malfunction, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION.)< Previous Next >
If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
