POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY

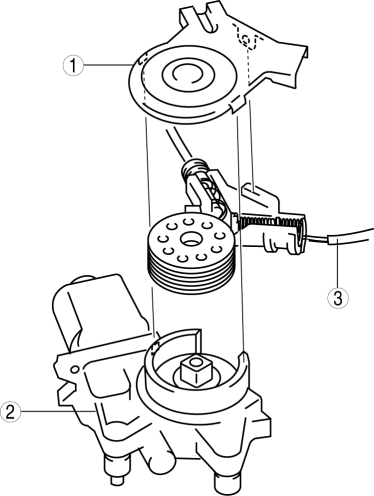

1. Disassemble in the order indicated in the table.

1

Cover (See Cover Removal Note.)

2

Power window motor

3

Frame
2. Assemble in the reverse order of disassembly.

CAUTION:

  • When installing the power window motor, be careful that the cable does not become unwounded from the drum.

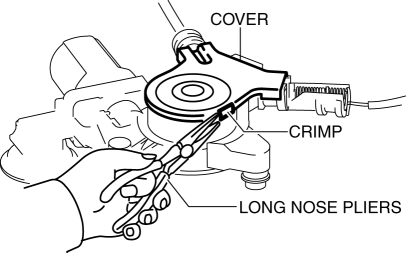

Cover Removal Note

1. Carefully bend away the crimp of the cover using long nose pliers.
