DOOR LOCK-LINK SWITCH INSPECTION

LH

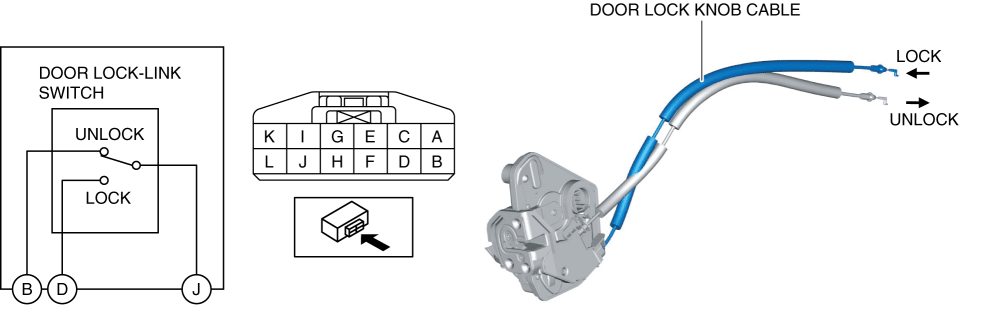

1. Fully close the door glass.
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
3. Remove the following parts:
a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
b. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)
c. Door key cylinder (See DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
d. Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
e. Door latch and lock actuator (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

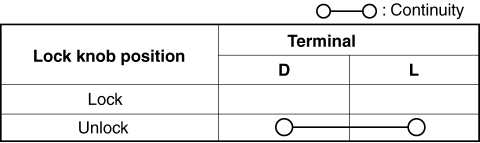

4. When the door lock knob cable is pulled or pressed in, verify that the continuity is as indicated in the table.

RH

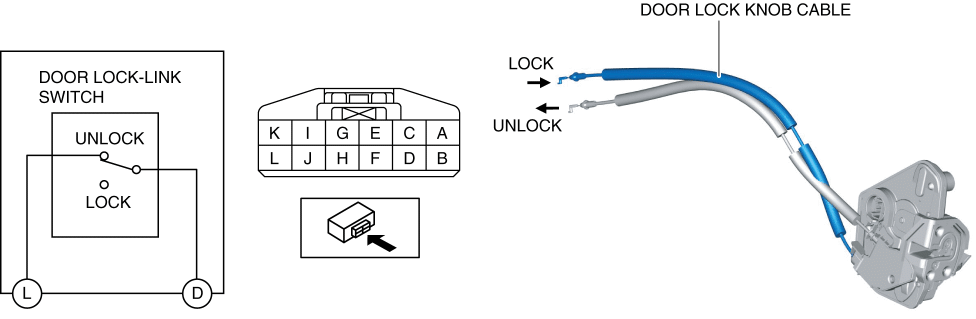

1. Fully close the door glass.
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
3. Remove the following parts:
a. Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
b. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)
c. Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
d. Door latch and lock actuator (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

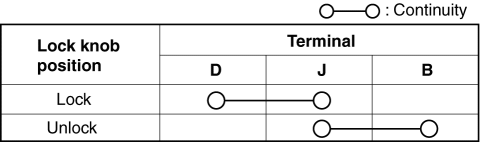

4. When the door lock knob cable is pulled or pressed in, verify that the continuity is as indicated in the table.
