TOP LOCK REMOVAL/INSTALLATION

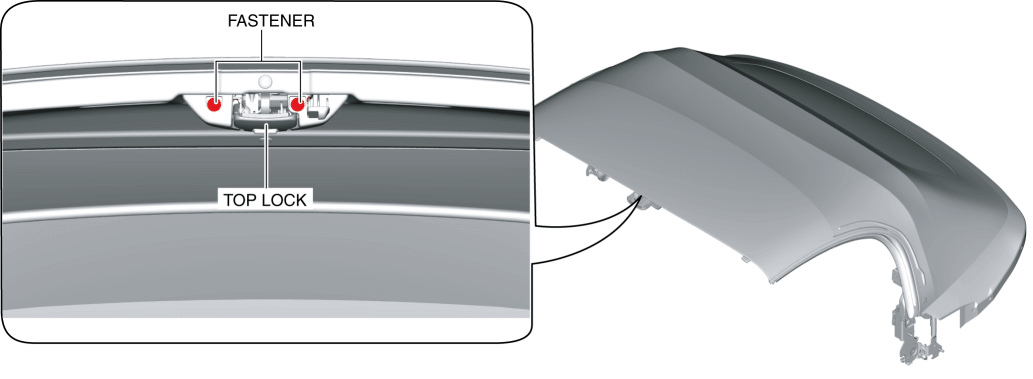

1. Remove the fasteners.

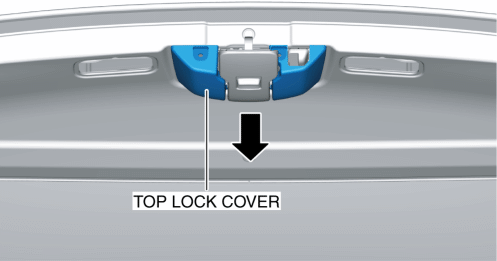

2. Pull the top lock cover in the direction of the arrow shown in the figure and remove it.

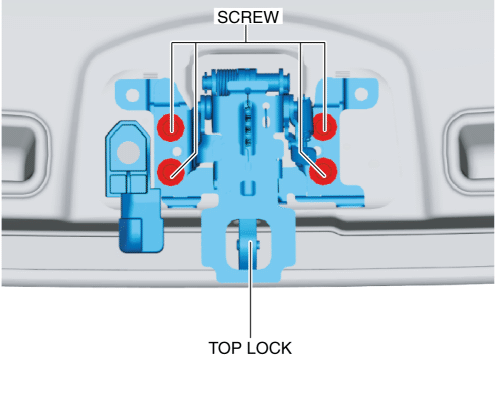

3. Place alignment marks on the top lock and the top lock installation screws.
4. Remove the screws.
5. Remove the top lock.
6. Install in the reverse order of removal.(See Top Lock Installation Note.)
Top Lock Installation Note
< Previous Next >
Install the top lock with the alignment marks aligned.
If the top lock is replaced, adjust the top lock installation position. (See CONVERTIBLE TOP ADJUSTMENT.)
