SIDE WALL REMOVAL/INSTALLATION
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)b. Shift lever knob (MT)c. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)h. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

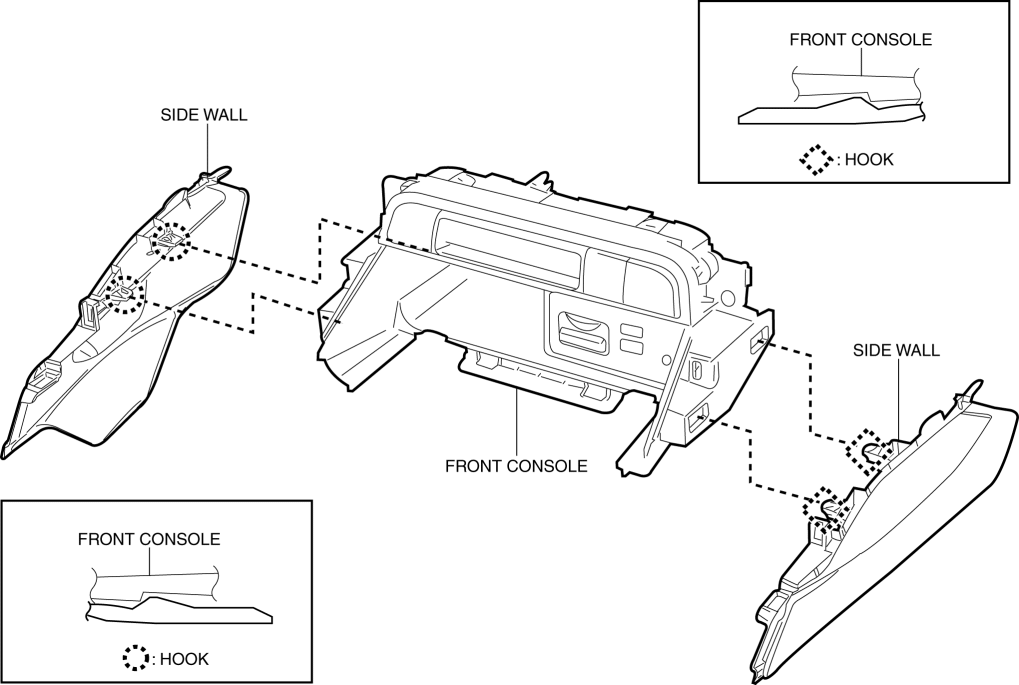

3. Detach the hooks in the positions shown in the figure from the front console.
4. Remove the side wall.
5. Install in the reverse order of removal.< Previous Next >
