HEADREST SPEAKER INSPECTION
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the seat. (See SEAT REMOVAL/INSTALLATION.)
3. Disconnect the headrest speaker connector. (See HEADREST SPEAKER REMOVAL/INSTALLATION.)

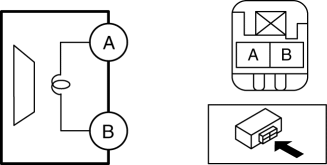

4. Inspect the resistance between headrest speaker terminals A and B.< Previous Next >Headrest speaker resistance
Without Bose®: 3.4—4.6 ohms
With Bose®: approx. 4.0 ohms
If not within the specification, replace the headrest speaker. (See HEADREST SPEAKER REMOVAL/INSTALLATION.)
