SiriusXM SATELLITE RADIO ANTENNA FEEDER INSPECTION

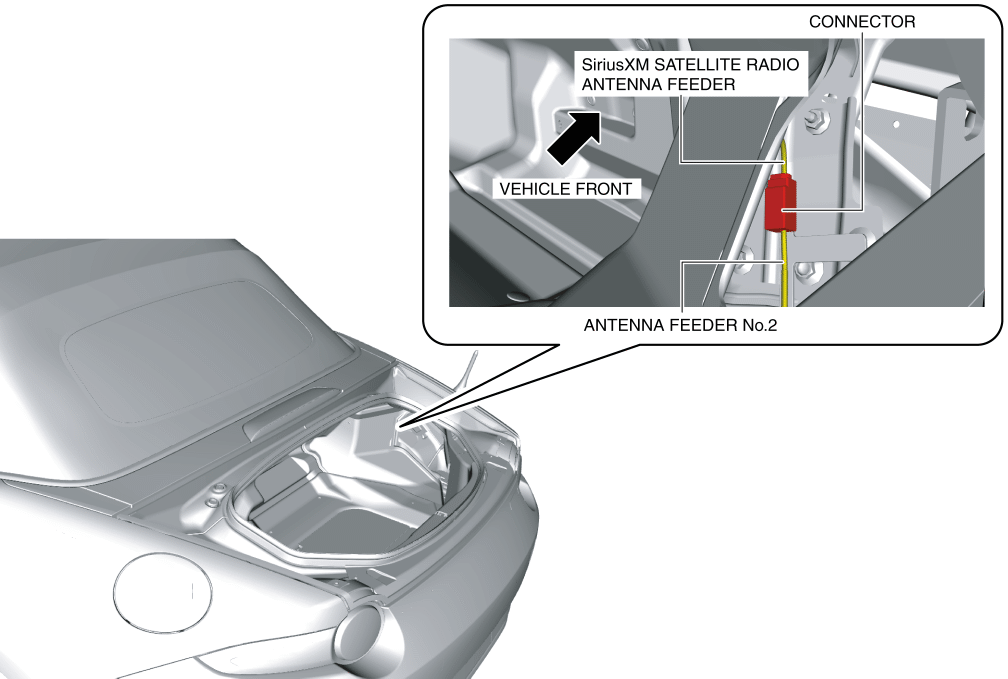

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

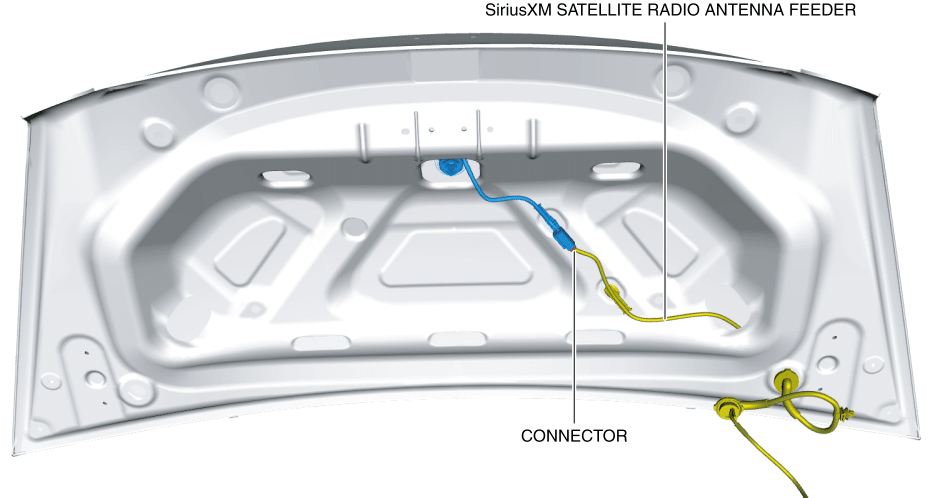

2. Disconnect the connector.

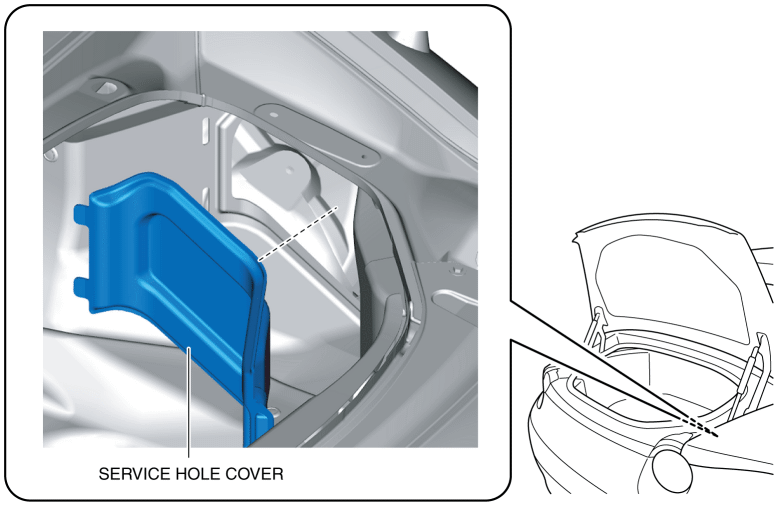

3. Remove the service hole cover on the trunk side trim (RH).
4. Disconnect the antenna feeder No.2 side connector.

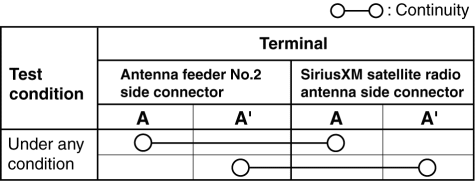

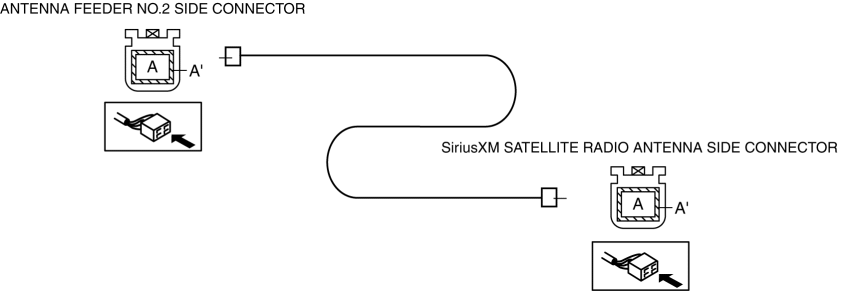

5. Verify that the continuity between the SiriusXM satellite radio antenna feeder terminals is as indicated in the table.< Previous Next >
If not as indicated in the table, replace the SiriusXM satellite radio antenna feeder. (See SiriusXM SATELLITE RADIO ANTENNA FEEDER REMOVAL/INSTALLATION.)
