DTC P0137:00 [PCM (SKYACTIV-G 2.0)]
NOTE:
To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".
Details On DTCs
DESCRIPTION |
HO2S circuit low input |
|
DETECTION CONDITION |
Determination conditions |
|
Preconditions |
|
|
Malfunction determination period |
|
|
Drive cycle |
|
|
Self test type |
|
|
Sensor used |
|
|
FAIL-SAFE FUNCTION |
|
|
VEHICLE STATUS WHEN DTCs ARE OUTPUT |
|
|
POSSIBLE CAUSE |
|

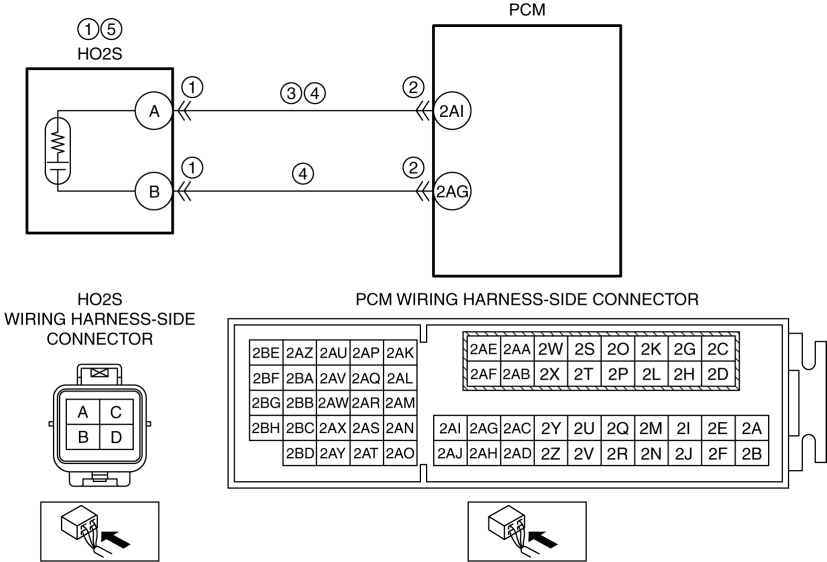

System Wiring Diagram
Function Explanation (DTC Detection Outline)
The PCM detects the oxygen concentration in the exhaust gas based on the HO2S signal. The PCM determines a HO2S signal error based on the condition in which the HO2S input voltage continues to be less than the specified value, and stores a DTC.
Repeatability Verification Procedure
Warm up the engine to allow the engine coolant temperature to reach 80 °C {176 °F} or more.
Start the engine and leave it idling for 1 min.
NOTE:
Match the engine coolant temperature in the recorded FREEZE FRAME DATA/snapshot data, the vehicle speed, and engine speed values to the best extent possible while driving the vehicle.
Try to reproduce the malfunction by driving the vehicle for 5 min based on the values in the FREEZE FRAME DATA/snapshot data.
PID Item/Simulation Item Used In Diagnosis
Not applicable
Function Inspection Using M-MDS
STEP |
INSPECTION |
RESULTS |
ACTION |
1 |
PURPOSE: VERIFY RELATED REPAIR INFORMATION AVAILABILITY
|
Yes |
Perform repair or diagnosis according to the available repair information.
|
No |
Go to the next step. |
||
2 |
PURPOSE: RECORD FREEZE FRAME DATA/SNAPSHOT DATA AND DIAGNOSTIC MONITORING TEST RESULTS TO UTILIZE WITH REPEATABILITY VERIFICATION NOTE:
|
— |
Go to the troubleshooting procedure to perform the procedure from Step 1. |
Troubleshooting Diagnostic Procedure
Intention of troubleshooting procedure
Step 1—4
Perform an inspection of the HO2S and PCM-related connectors and wiring harnesses.
Step 5
Perform a unit inspection of the HO2S.
Step 6—7
Verify that the primary malfunction is resolved and there are no other malfunctions.
STEP |
INSPECTION |
RESULTS |
ACTION |
1 |
PURPOSE: INSPECT HO2S CONNECTOR CONDITION
|
Yes |
Replace the HO2S, then go to Step 6. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) |
No |
Go to the next step. |
||
2 |
PURPOSE: INSPECT PCM CONNECTOR CONDITION
|
Yes |
Replace the PCM, then go to Step 6. |
No |
Go to the next step. |
||
3 |
PURPOSE: INSPECT HO2S SIGNAL CIRCUIT FOR SHORT TO GROUND
|
Yes |
Refer to the wiring diagram and verify whether or not there is a common connector between HO2S terminal A and PCM terminal 2AI.
Go to Step 6. |
No |
Go to the next step. |
||
4 |
PURPOSE: INSPECT HO2S CIRCUIT FOR OPEN CIRCUIT
|
Yes |
Go to the next step. |
No |
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
Go to Step 6. |
||
5 |
PURPOSE: DETERMINE INTEGRITY OF HO2S
|
Yes |
Replace the HO2S, then go to the next step. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) |
No |
Go to the next step. |
||
6 |
PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION
|
Yes |
Repeat the inspection from Step 1.
Go to the next step. |
No |
Go to the next step. |
||
7 |
PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION
|
Yes |
Go to the applicable DTC inspection. |
No |
DTC troubleshooting completed. |
