DTC P0122:00 [PCM (SKYACTIV-G 2.0)]

DTC P0122:00	TP sensor No.1 circuit low input
DETECTION CONDITION	If the PCM detects that the TP sensor No.1 voltage at the PCM terminal 1BP is below 0.1 V, the PCM determines that the TP sensor No.1 circuit has a malfunction. Diagnostic support note This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA/Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Restricts the upper limit of the engine speed.

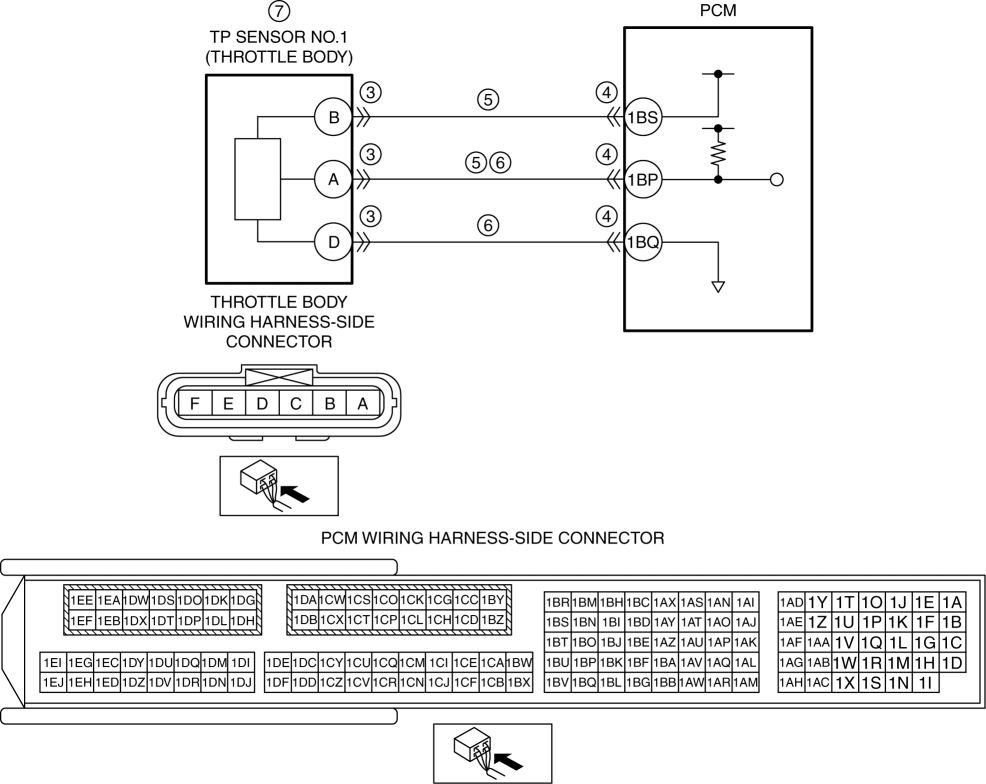

POSSIBLE CAUSE	Throttle body connector or terminals malfunction PCM connector or terminals malfunction Short to ground in wiring harness between the following terminals: Throttle body terminal B—PCM terminal 1BS Throttle body terminal A—PCM terminal 1BP TP sensor No.1 signal circuit and ground circuit are shorted to each other TP sensor No.1 malfunction PCM malfunction

CAUTION:

Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.

Related PIDs

Item (definition)	Unit/Condition	Definition	Condition/Specification (Reference)
TP1	%	Throttle valve position No.1	Accelerator pedal released: Approx. 21.56% Accelerator pedal fully depressed: Approx. 91.37%
TP1	V	TP sensor No.1 voltage	Accelerator pedal released: Approx. 1.07 V Accelerator pedal fully depressed: Approx. 4.56 V

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION NOTE: Recording can be facilitated using the screen capture function of the PC. Record the FREEZE FRAME DATA/snapshot data on the repair order.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION AVAILABILITY Verify related Service Bulletins and/or on-line repair information availability. Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. If the vehicle is not repaired, go to the next step.
		No	Go to the next step.
3	INSPECT THROTTLE BODY CONNECTOR CONDITION Switch the ignition off. Disconnect the throttle body connector. Inspect for poor connection (such as damaged/pulled-out pins, corrosion). Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 8.
		No	Go to the next step.
4	INSPECT PCM CONNECTOR CONDITION Disconnect the PCM connector. Inspect for poor connection (such as damaged/pulled-out pins, corrosion). Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 8.
		No	Go to the next step.
5	INSPECT TP SENSOR NO.1 CIRCUIT FOR SHORT TO GROUND Verify that the throttle body and PCM connectors are disconnected. Inspect for continuity between the following terminals (wiring harness-side) and body ground: Throttle body terminal B Throttle body terminal A Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: Throttle body terminal B—PCM terminal 1BS Throttle body terminal A—PCM terminal 1BP If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has a short to ground. Go to Step 8.
		No	Go to the next step.
6	INSPECT TP SENSOR NO.1 SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT TO EACH OTHER Verify that the throttle body and PCM connectors are disconnected. Inspect for continuity between throttle body terminals A and D (wiring harness-side). Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: Throttle body terminal A—PCM terminal 1BP Throttle body terminal D—PCM terminal 1BQ If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to each other. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has a short to each other. Go to Step 8.
		No	Go to the next step.
7	INSPECT TP SENSOR NO.1 Reconnect all disconnected connectors. Inspect the TP sensor No.1. (See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G 2.0].) Is there any malfunction?	Yes	Replace the throttle body, then go to the next step. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
		No	Go to the next step.
8	VERIFY DTC TROUBLESHOOTING COMPLETED Always reconnect all disconnected connectors. Clear the DTC from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-G 2.0)].) Perform the KOEO or KOER self test. (See KOEO/KOER SELF TEST [PCM (SKYACTIV-G 2.0)].) Is the same DTC present?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) Go to the next step.
		No	Go to the next step.
9	VERIFY AFTER REPAIR PROCEDURE Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-G 2.0)].) Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (SKYACTIV-G 2.0)].)
		No	DTC troubleshooting completed.
