PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 2.0]

Airflow Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the seal cover. (See SEAL COVER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3. Remove the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

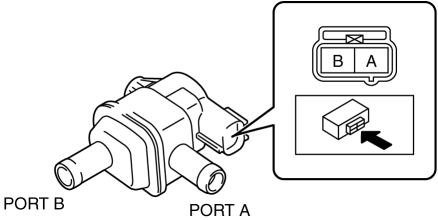

4. Inspect airflow between the ports under the following conditions.

Measured condition

Continuity between ports A—B

When voltage is not applied between terminals A and B

No airflow

When voltage is applied between terminals A and B

Airflow detected
