DRIVE SELECTION SWITCH INSPECTION [SKYACTIV-G 2.0]

Resistance Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

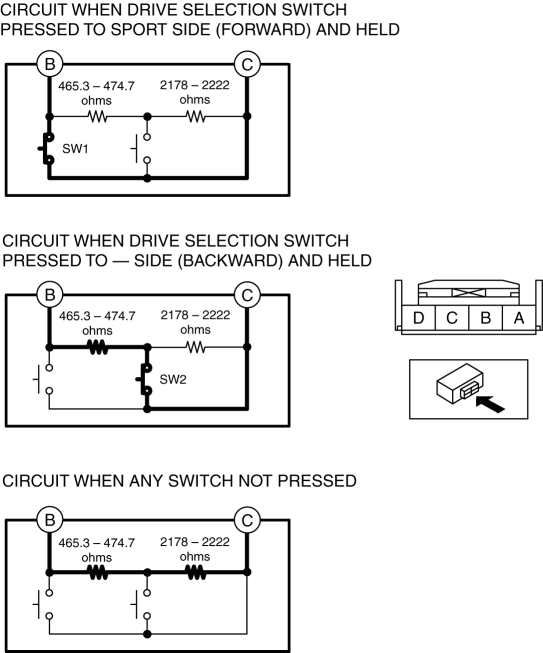

3. Measure the resistance between drive selection switch terminals B and C under the following conditions.
    Resistance when drive selection switch pressed to SPORT side (forward) and held

  • 0 ohms

    Resistance when drive selection switch pressed to — side (backward) and held

  • 465.3—474.7 ohms

    Resistance when any switch not pressed

  • 2643.3—2696.7 ohms
