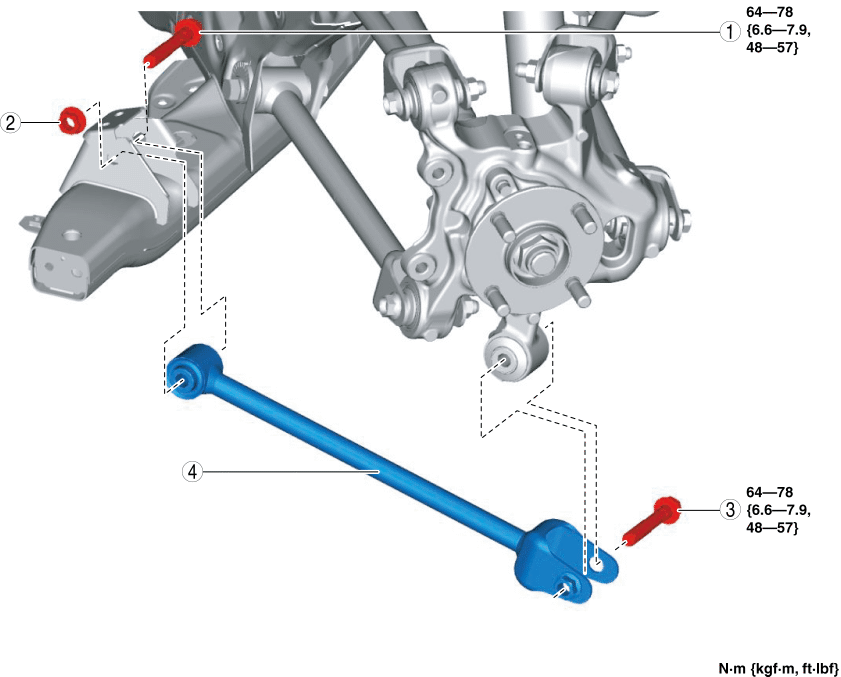

TRAILING LINK REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Inspect the rear wheel alignment and adjust if necessary. (See REAR WHEEL ALIGNMENT.)

1

Trailing link inner bolt

(See Trailing Link Inner Bolt Installation Note.)

2

Trailing link inner nut

3

Trailing link outer bolt

4

Trailing link

(See Trailing Link Installation Note.)

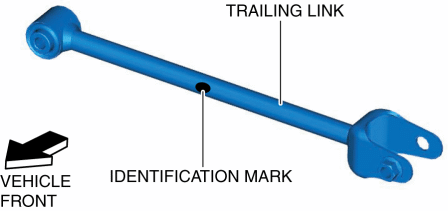

Trailing Link Installation Note

1. Install the trailing link with the identification mark facing the front of the vehicle.

Trailing Link Inner Bolt Installation Note

1. Insert the trailing link inner bolt from the inside of the vehicle and tighten it to the specified torque.
    Tightening torque

  • 64—78 N·m {6.6—7.9 kgf·m, 48—57 ft·lbf}
