LOCK BRACKET REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the following parts:

a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

b. Shift lever knob (MT)

c. Shift panel assembly (See SHIFT PANEL REMOVAL/INSTALLATION.)

d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

e. Parking brake lever boot panel(See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

g. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

h. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

i. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION.)

j. Seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

k. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

l. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION.)

m. Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

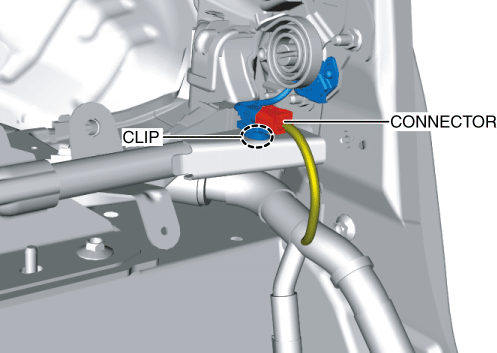

3. Disconnect the connector.

4. Remove the clip.

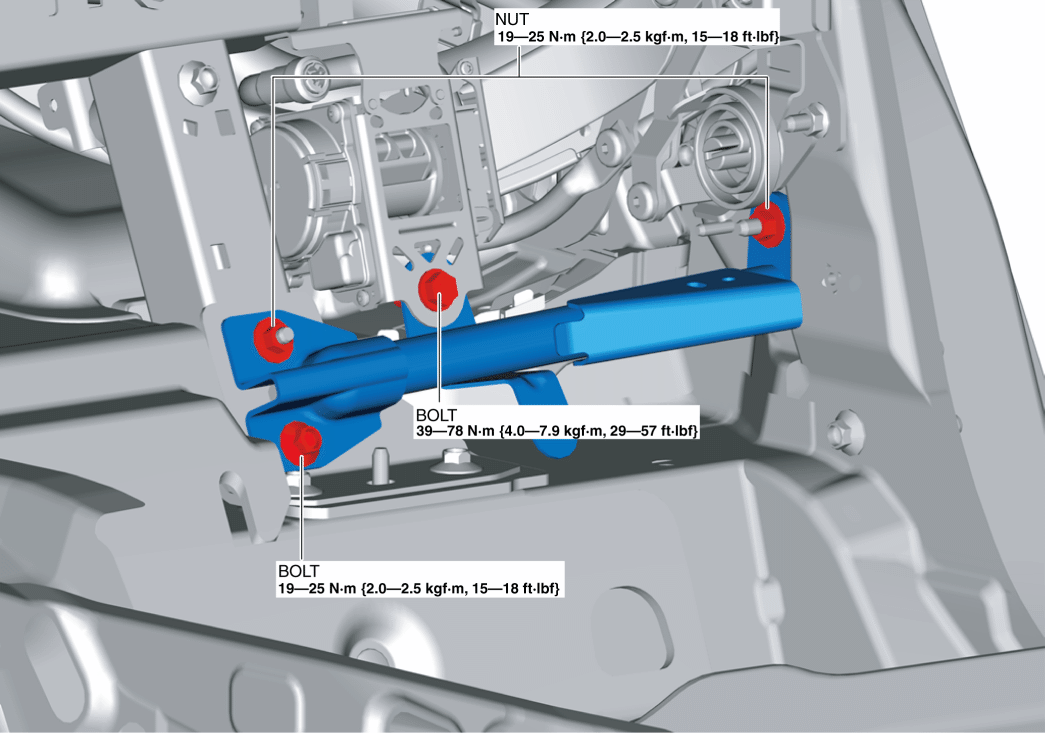

5. Remove the bolts and nut.

6. Remove the lock bracket.

7. Install in the reverse order of removal.
