AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
b. Shift lever knob (MT)
c. Shift panel compartment (See SHIFT PANEL REMOVAL/INSTALLATION.)
d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)
f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)
h. Front console compartment (See FRONT CONSOLE REMOVAL/INSTALLATION.)
i. Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

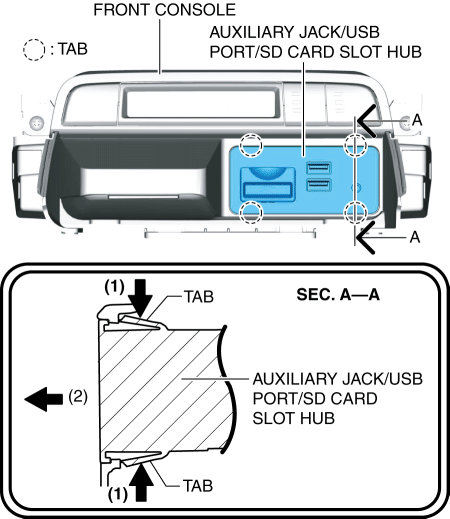

3. While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the front console.

4. Detach all auxiliary jack/USB port/SD card slot hub tabs from the front console.
5. Remove the auxiliary jack/USB port/SD card slot hub.
6. Install in the reverse order of removal.
