INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE
CAUTION:
The personalization feature may not be set correctly if [Not equipped] is selected in the setting displayed on the M-MDS. Do not select [Not equipped] in the setting displayed on the M-MDS.
Turn And Hazard Indicator Alarm
Using M-MDS
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.a. “Module programming”b. “Programmable Parameters”
3. Then, select “IC” from the screen menu.
4. Select an item name, and than select option.
| Mazda Modular Diagnostic System (M-MDS) display |
Function |
Initial setting |
Setting contents |
Control unit |
| Turn Signal Volume. |
The volume of the turn and hazard indicator alarm can be changed. |
Low |
Low / High |
Instrument cluster |
Using center display
For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
Lights-on Reminder Warning Alarm
Using M-MDS
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.a. “Module programming”b. “Programmable Parameters”
3. Then, select “IC” from the screen menu.
4. Select an item name, and than select option.
| Mazda Modular Diagnostic System (M-MDS) display |
Function |
Initial setting |
Setting contents |
Control unit |
| Lights-on Reminder Volume. |
The volume for the lights-on reminder warning alarm can be changed. |
OFF*1 |
OFF / Low / High |
Instrument cluster |
- *1
- The setting of the lights-on reminder can be changed with the time setting of auto light off system set to Off.
Using center display
For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
Temperature
NOTE:
When the ambient temperature display is switched, the set engine coolant temperature gauge display is also changed.

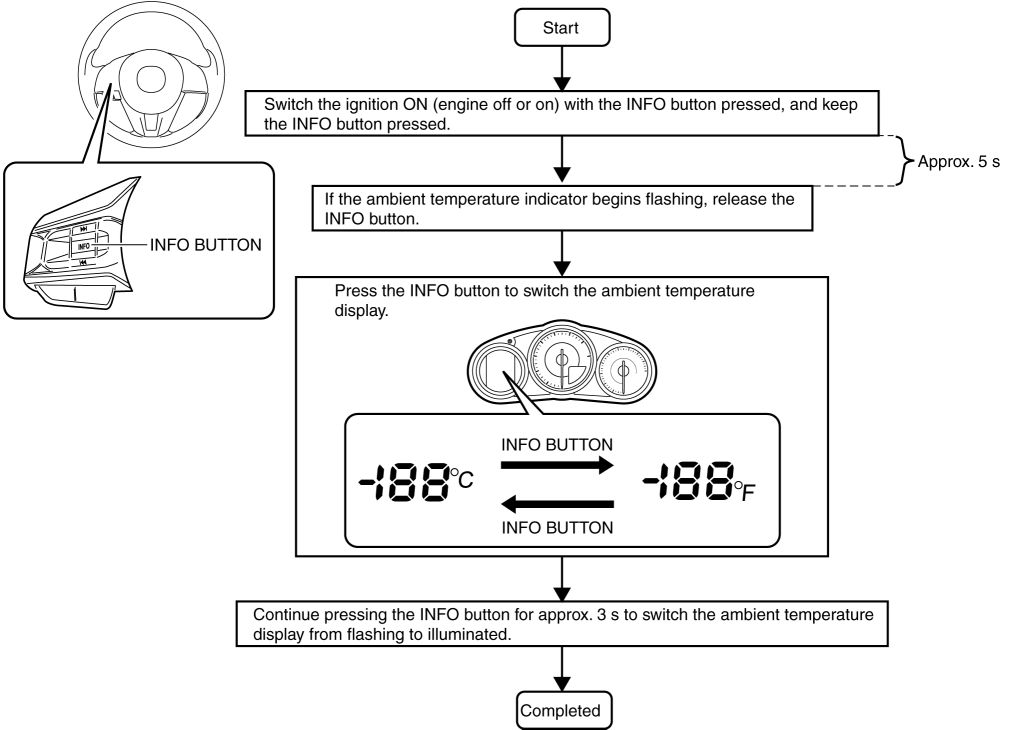

Using instrument cluster (without center display)
Using center display
For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
Distance
Using center display
< Previous Next >
For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
