BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the following parts:

a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

b. Shift lever knob (MT)

c. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

h. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

i. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

j. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

k. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

l. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

m. Center panel No.2 (See CENTER PANEL No.2 REMOVAL/INSTALLATION.)

n. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

o. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

p. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

q. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

r. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

s. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

t. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

u. Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

v. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

w. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

x. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

y. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION.)

z. Center panel No.1 (See CENTER PANEL No.1 REMOVAL/INSTALLATION.)

aa. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

ab. Audio unit (without center display) (See AUDIO UNIT REMOVAL/INSTALLATION.)

ac. Center display (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

ad. Dashboard (See CENTER DISPLAY REMOVAL/INSTALLATION.)

ae. BCM (See CENTER DISPLAY REMOVAL/INSTALLATION.)

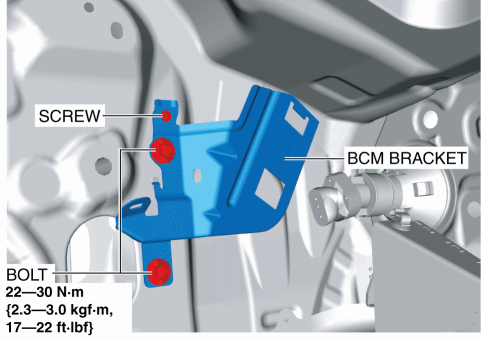

3. Remove the bolt.

4. Remove the screw.

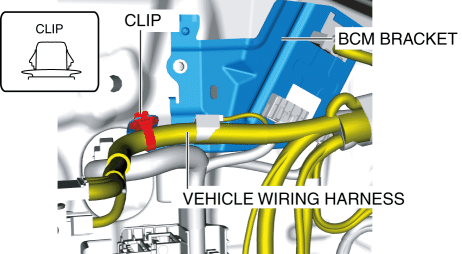

5. Remove the vehicle wiring harness clip.

6. Remove the BCM bracket.

7. Install in the reverse order of removal.
