ELECTRICAL SUPPLY UNIT (ESU) BRACKET REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the following parts:

a. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

b. Shift lever knob (MT)

c. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

d. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

e. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

f. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

g. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

h. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

i. Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

j. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

k. Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

l. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

m. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

n. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

o. electrical supply unit (ESU) (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.)

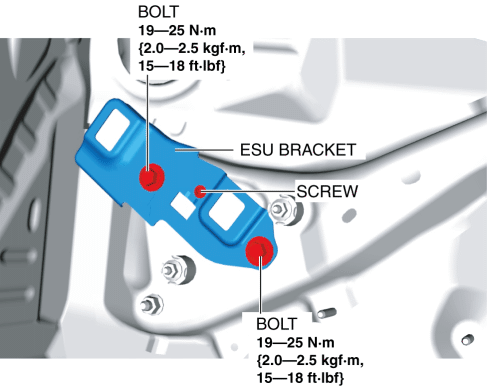

3. Remove the bolts.

4. Remove the screw.

5. Remove the electrical supply unit (ESU) bracket.

6. Install in the reverse order of removal.
