Description

Blind spot monitoring (BSM) control module (RH) low power supply voltage input

Detection condition

• Blind spot monitoring (BSM) control module (RH) power supply circuit voltage of 9 V or less is detected for 1 s or more with the ignition switched ON (engine off or on).

Fail-safe

• Blind spot monitoring (BSM) system is stopped.

Possible cause

• DTCs are stored in the PCM.

• Battery malfunction

• Generator malfunction

• Blind spot monitoring (BSM) control module (RH) connector or terminal malfunction

• Blind spot monitoring (BSM) control module (RH) power supply circuit malfunction

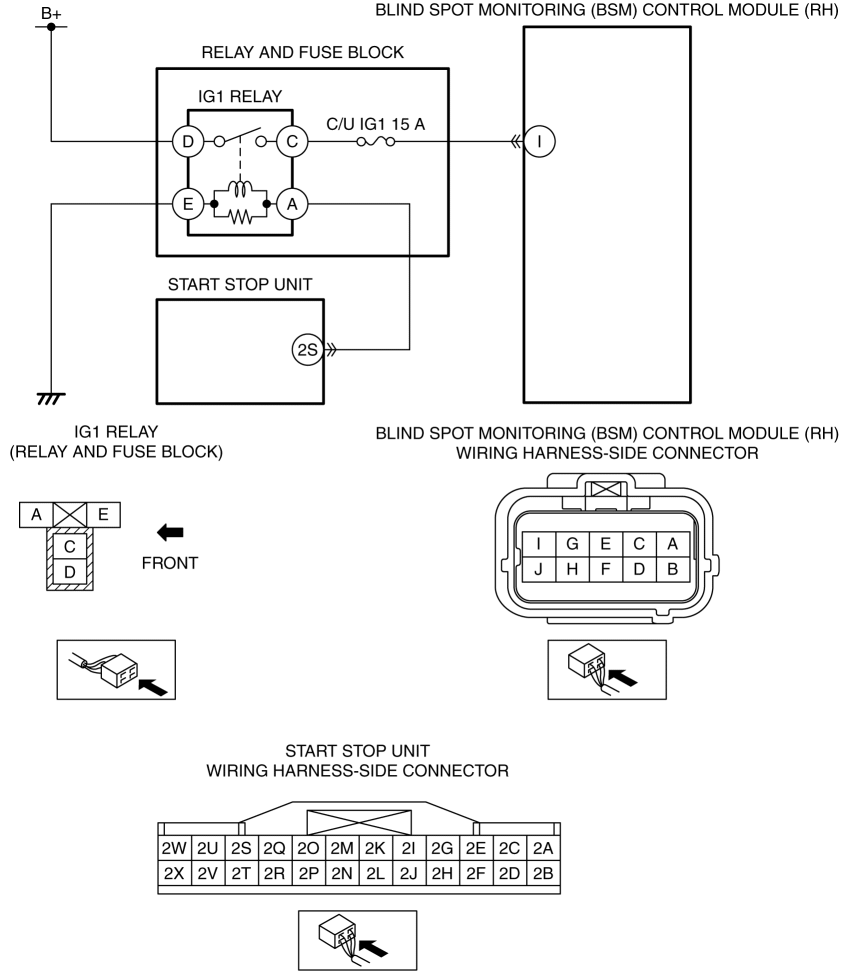

• Short to ground in wiring harness between C/U IG1 15 A fuse and blind spot monitoring (BSM) control module (RH) terminal I

• C/U IG1 15 A fuse malfunction

• Open circuit in wiring harness between IG1 relay terminal C and blind spot monitoring (BSM) control module (RH) terminal I

• Blind spot monitoring (BSM) control module (RH) malfunction

Step

Inspection

Action

1

• Retrieve the PCM DTCs using the M-MDS.

  (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.0)].)

• Are any DTCs displayed?

Yes

Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G 2.0)].)

No

Go to the next step.

2

• Inspect the battery.

  (See BATTERY INSPECTION.)

• Is the battery normal?

Yes

Go to the next step.

No

Recharge or replace the battery, then go to Step 6.

(See BATTERY RECHARGING.)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3

• Inspect the generator.

  (See GENERATOR INSPECTION [SKYACTIV-G 2.0].)

• Is the generator normal?

Yes

Go to the next step.

No

Replace the generator, then go to Step 6.

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

4

• Switch the ignition off.

• Disconnect the negative battery cable.

  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

• Disconnect the blind spot monitoring (BSM) control module (RH) connector.

• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

• Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 6.

5

• Always reconnect all disconnected connectors.

• Connect the negative battery cable.

  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

• Display the PID VPWR_R using the M-MDS.

  (See PID/DATA MONITOR INSPECTION [BLIND SPOT MONITORING (BSM) CONTROL MODULE].)

• Is the voltage B+?

Yes

Go to the next step.

No

Inspect the C/U IG1 15 A fuse.

• If the fuse is blown:

• Refer to the wiring diagram and verify whether or not there is a common connector between C/U IG1 15 A fuse and blind spot monitoring (BSM) control module (RH) terminal I.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.

• Repair or replace the malfunctioning part.

If there is no common connector:

• Repair or replace the wiring harness which has a short to ground.

• Replace the fuse.

• If the fuse is damaged:

• Replace the fuse.

• If the fuse is normal:

• Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and blind spot monitoring (BSM) control module (RH) terminal I.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

• Repair or replace the malfunctioning part.

If there is no common connector:

• Repair or replace the wiring harness which has an open circuit.

Go to the next step.

6

• Always reconnect all disconnected connectors.

• Connect the negative battery cable.

  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

• Clear the DTC for the blind spot monitoring (BSM) control module using the M-MDS.

  (See CLEARING DTC [BLIND SPOT MONITORING (BSM) CONTROL MODULE].)

• Switch the ignition ON (engine off or on) and wait for 2.5 s or more.

• Retrieve the blind spot monitoring (BSM) control module DTCs using the M-MDS.

  (See DTC INSPECTION [BLIND SPOT MONITORING (BSM) CONTROL MODULE].)

• Is the same DTC displayed?

Yes

Repeat the inspection from Step 1.

• If the malfunction recurs, replace the blind spot monitoring (BSM) control module.

  (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

7

• Are any other DTCs displayed?

Yes

Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.

(See DTC TABLE [BLIND SPOT MONITORING (BSM) CONTROL MODULE].)

No

DTC troubleshooting completed.
